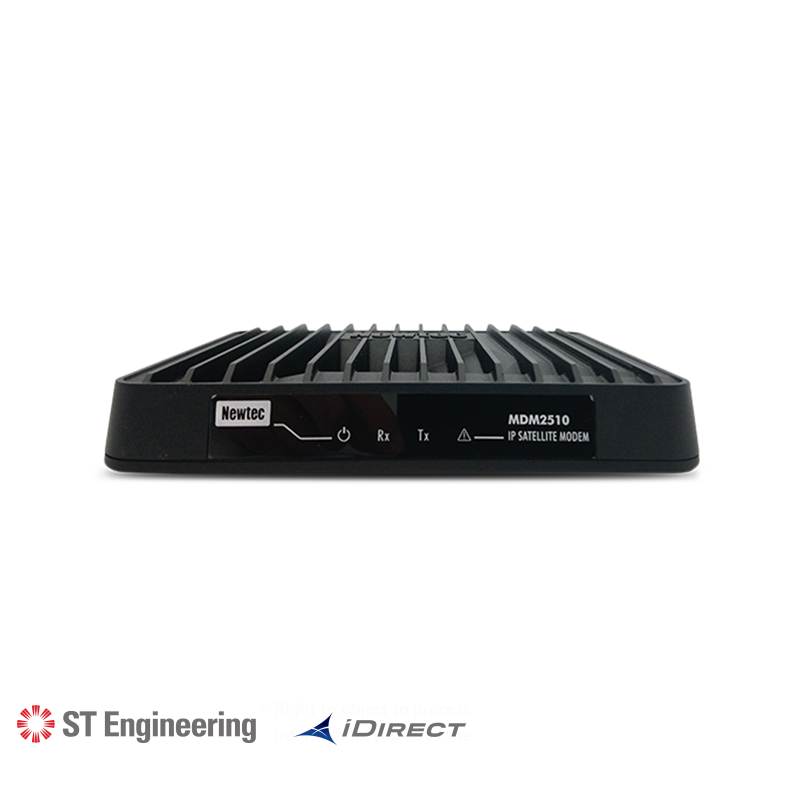

ST Engineering iDirect MDM2510 Satellite Modem
DVB-S2X High Throughput Satellite (HTS) VSAT Modem for Dialog Platform
The iDirect MDM2510 Satellite Modem is a compact DVB-S2X High Throughput Satellite (HTS) VSAT modem designed for the Dialog platform, supporting MF-TDMA and Mx-DMA with up to 120 Mbps throughput for enterprise, government, mobility, and cellular backhaul applications.
Features
DVB-S2 / DVB-S2X support up to 480 Msps
DVB-S2X MODCOD up to 64APSK
MF-TDMA and Mx-DMA MRC return technologies up to 20 Msps
Throughput up to 120 Mbps DL / 20 Mbps UL
OpenAMIP and GXT support for mobility applications
Embedded TCP acceleration, GTP acceleration, header compression, and encryption
Key Specifications
Frequency: Tx 2750–3000 MHz; Rx 950–2150 MHz
Modulation: QPSK, 8PSK, 16APSK, 32APSK, 64APSK (DVB-S2X)
Forward Link: up to 480 Msps
Return: MF-TDMA, Mx-DMA MRC (up to 20 Msps)
Throughput: up to 120 Mbps DL / 20 Mbps UL
Interface: 4× Gigabit Ethernet
RF Connector: F-Type, 75 Ohm
Power: typ. 21 W (max. 120 W), AC or 24 VDC
Size: 21 × 18 × 3.5 cm; Weight: 0.9 kg
