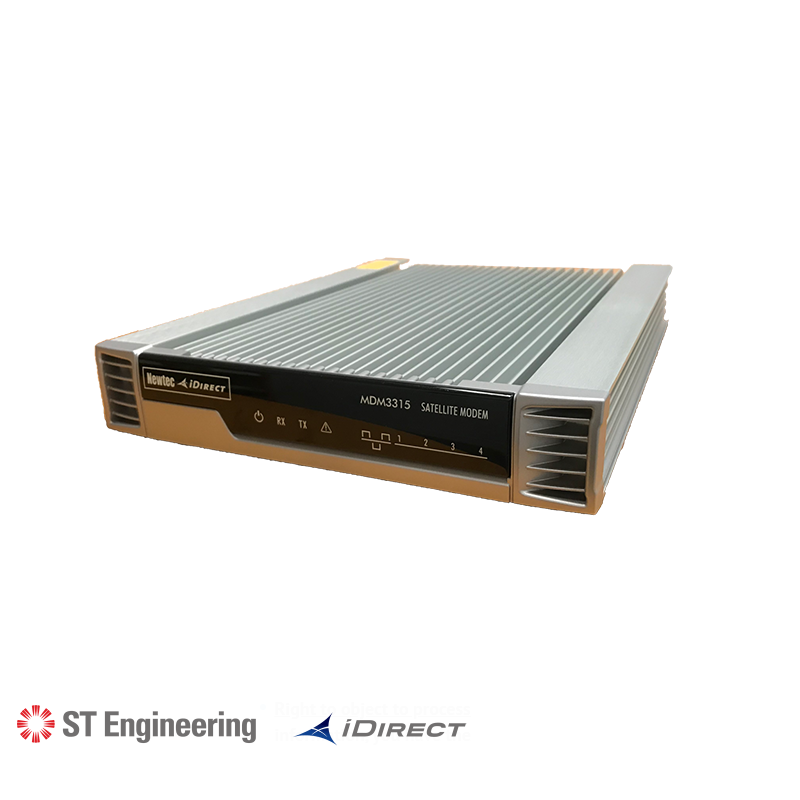

ST Engineering iDirect MDM3315 Satellite Modem
DVB-S2X High Throughput Satellite (HTS) VSAT Modem for Dialog Platform
The iDirect MDM3315 Satellite Modem is a high-performance DVB-S2X High Throughput Satellite (HTS) VSAT modem designed for the Dialog platform, supporting MF-TDMA, SCPC, and Mx-DMA return technologies with high throughput for enterprise, government, maritime, and cellular backhaul applications.
Features
DVB-S2 / DVB-S2X support up to 480 Msps
DVB-S2X MODCOD up to 64APSK
MF-TDMA, SCPC, and Mx-DMA return technologies
High throughput up to ~150 Mbps class (platform dependent)
OpenAMIP and mobility support
Embedded TCP acceleration, header compression, and advanced networking features
Optional AES encryption and secure authentication
Key Specifications
Frequency: Tx 2750–3000 MHz; Rx 950–2150 MHz
Modulation: QPSK, 8PSK, 16APSK, 32APSK, 64APSK (DVB-S2X)
Forward Link: up to 480 Msps
Return: MF-TDMA, SCPC, Mx-DMA (up to ~20 Msps class)
Interface: 4× Gigabit Ethernet
RF Connector: F-Type, 75 Ohm
Power: typ. 21 W (max. ~60 W), AC or 24 VDC
Size: approx. 22 × 22 × 3 cm; Weight: ~1.5 kg
