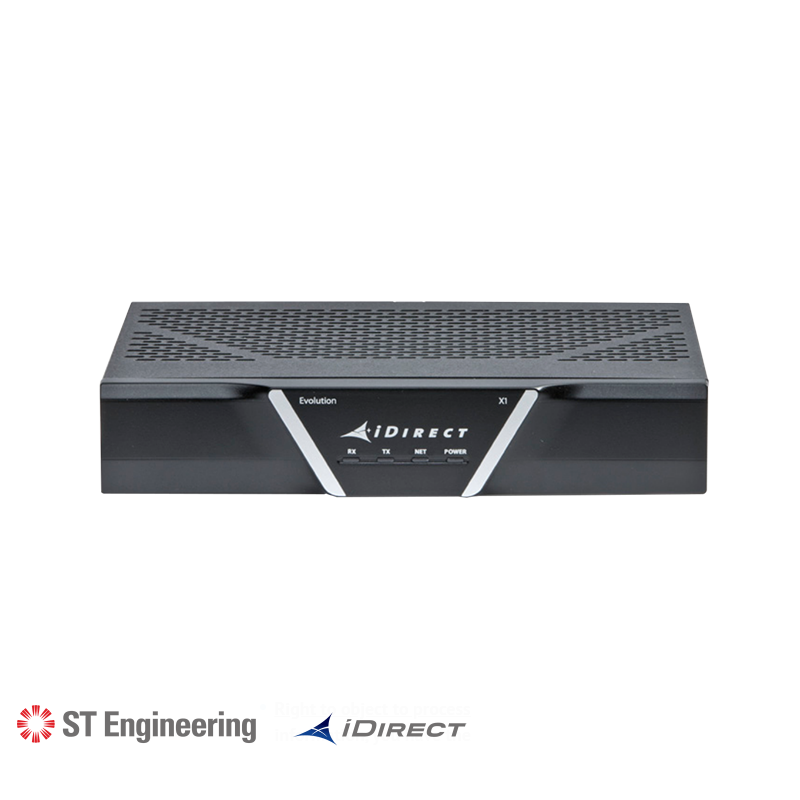

iDirect Evolution X1 Satellite Router

iDirect Evolution X1 Satellite Router (EOL)

The iDirect Evolution X1 Satellite Router is a compact and cost-effective VSAT remote designed for enterprise, SCADA, ATM, and cellular backhaul applications.

Built on the iDirect Evolution platform, it supports DVB-S2/ACM downstream and Adaptive TDMA upstream, delivering reliable performance for small to medium satellite networks. This model is now end-of-life (EOL) but remains widely used in legacy deployments.

Key Features

DVB-S2/ACM downstream + Adaptive TDMA upstream

Integrated satellite modem and IP router

Support for QoS, VLAN, and traffic prioritization

Optional AES-256 encryption

Built-in uplink power, frequency, and timing control

Compact indoor design for easy deployment

Web-based configuration and remote management

Key Specifications

Downstream: Up to 150 Mbps

Upstream: Up to 10 Mbps

Interfaces: 10/100 Ethernet

Frequency: L-band (950 – 2150 MHz)

Operating Temp: 0°C to +50°C

Power: AC and DC input options

Form Factor: Compact indoor unit

Applications

Enterprise satellite connectivity

ATM and point-of-sale networks

SCADA and industrial systems

Cellular backhaul (femtocells)

Small VSAT networks
