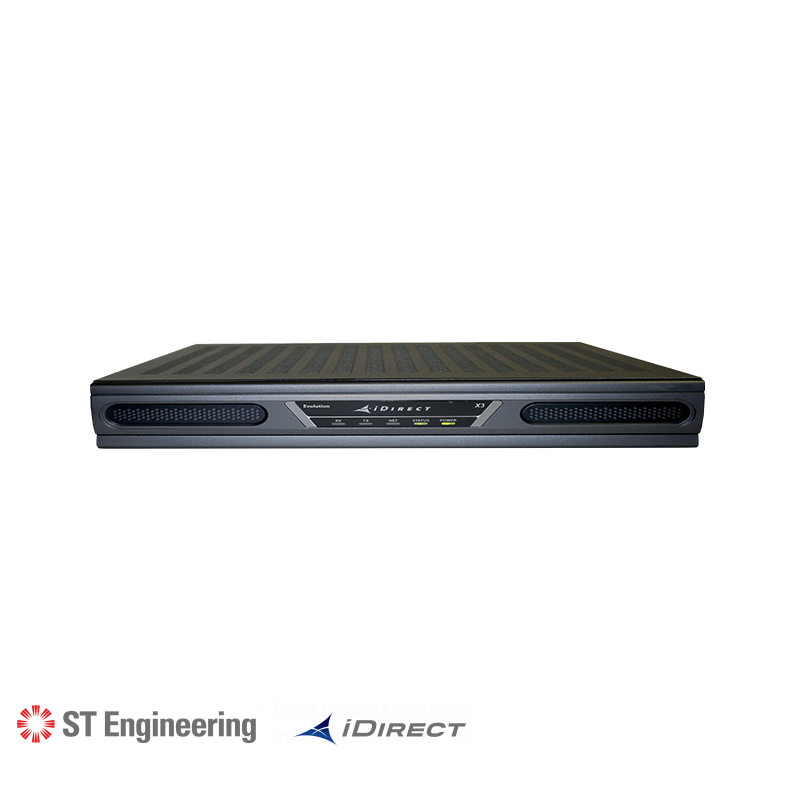

iDirect Evolution X3 Satellite Router

iDirect Evolution X3 Satellite Router (EOL)

The iDirect Evolution X3 Satellite Router is a high-efficiency VSAT remote designed for enterprise broadband, VoIP, and VPN applications over satellite networks.

Built on the Evolution platform, it supports DVB-S2/ACM outbound and deterministic MF-TDMA or SCPC return, maximizing bandwidth efficiency and network performance. The X3 is now end-of-life (EOL) but remains widely deployed in legacy enterprise and service provider networks.

Key Features

DVB-S2/ACM downstream for improved efficiency

Deterministic MF-TDMA or SCPC upstream

Integrated satellite modem and IP router

Advanced QoS and traffic prioritization

Built-in TCP and HTTP acceleration

Optional AES-256 encryption

Seamless integration with IP networks

Managed via iVantage™ network management system

Key Specifications

Downstream: Up to 150 Mbps

Upstream: Up to 12.8 Mbps (TDMA) / 24 Mbps (SCPC)

Interfaces: 10/100 Ethernet, RS-232 console

Frequency: L-band (950 – 2150 MHz)

Operating Temp: 0°C to +50°C

VLAN: 802.1q supported

Power: AC input

Applications

Enterprise broadband connectivity

VoIP and video conferencing

Corporate VPN networks

Retail and branch connectivity

SCADA and telemetry systems
