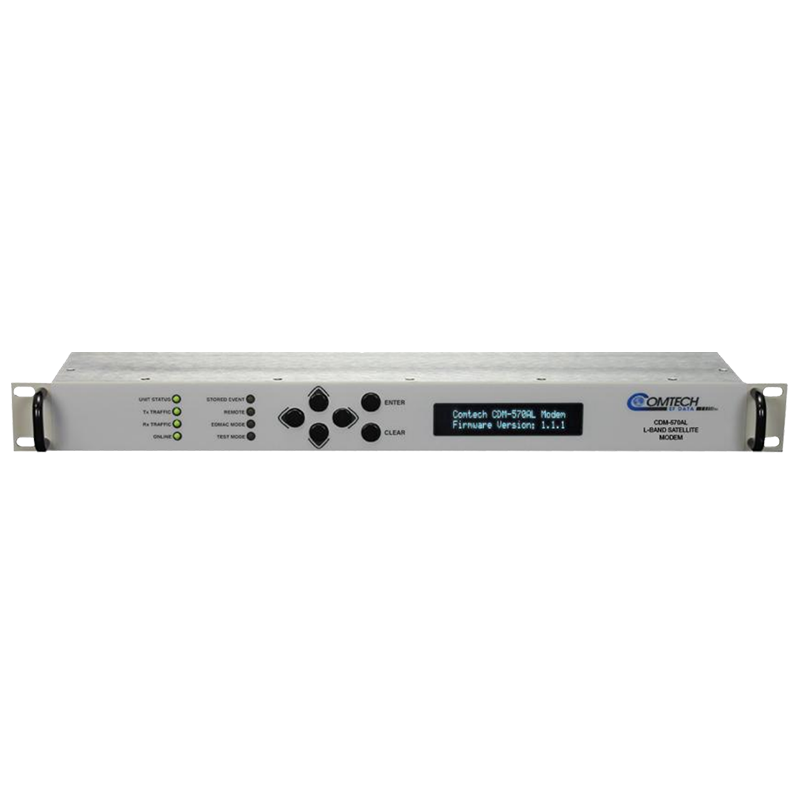

Comtech CDM-570A/L & CDM-570A/L-IP Satellite Modems

Comtech CDM-570A/L & CDM-570A/L-IP Satellite Modems

The Comtech CDM-570A/L and CDM-570A/L-IP are bandwidth-efficient satellite modems for enterprise, mobile backhaul, maritime and emergency communication networks. They combine VersaFEC-2, optional DoubleTalk Carrier-in-Carrier and optimized transmit rolloffs to reduce satellite bandwidth and power requirements. Models are available with 70/140 MHz or L-band IF, while IP versions add packet processing, compression, QoS and Vipersat integration.

Frequency Range: 50–90 MHz or 100–180 MHz; 950–2250 MHz L-band
Data Rate: 2.4 kbps to 10.239 Mbps
Symbol Rate: 4.8 ksps to 3 Msps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8-QAM, 16-QAM and 32-ARY
Data Interfaces: EIA-422/530, V.35, synchronous EIA-232, G.703 T1/E1 and optional Ethernet
Applications: Enterprise networks, mobile backhaul, maritime communications, communications-on-the-move, disaster recovery and satellite news gathering

Available Models

• CDM-570A: 50–90 MHz or 100–180 MHz IF

• CDM-570AL: 950–2250 MHz L-band IF

• CDM-570A-IP: Low-IF model with IP packet processing

• CDM-570AL-IP: L-band model with IP packet processing

Key Features

• VersaFEC-2 high-performance LDPC

• VersaFEC low-latency and ultra-low-latency FEC

• ACM for point-to-point IP satellite links

• Optional DoubleTalk Carrier-in-Carrier bandwidth compression

• Carrier-in-Carrier Automatic Power Control

• Selectable 5%, 10%, 15%, 20%, 25% and 35% transmit rolloff

• Optional packet processor with routed and managed-switch modes

• Optional header and payload compression

• Advanced Quality of Service and VLAN support

• Vipersat Management System integration for dynamic SCPC

• Automatic Uplink Power Control and EDMAC

• G.703 clock extension for mobile backhaul synchronization

• MetaCarrier Carrier ID technology

• L-band BUC and LNB reference and power options

• SNMP, web, Telnet and command-line management

• 1:1 and 1:10 redundancy options
