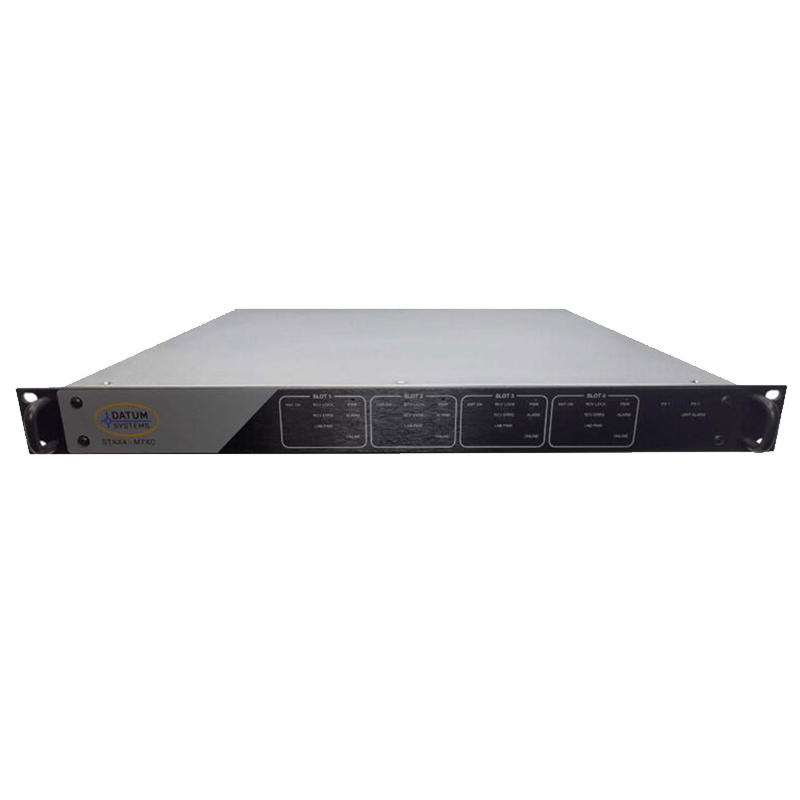

The Datum Systems STAX-4 is a high-density, telco-grade 1RU multi-modem chassis designed for satellite hubs, teleports and other mission-critical SATCOM networks. It accommodates up to four Datum M7XC software-defined modems, delivering up to four independently tunable modulators, 64 demodulators and 400 Msps transmit and receive capacity in a single rack unit.

Each installed M7XC modem has independent transmit, receive, user-data Ethernet, monitor and control, and reset connections. The STAX-4 supports all compatible M7XC waveforms and capabilities, including DVB-S2X, FlexLDPC, ACM, DSSS, AES-256 TRANSEC and Smart Carrier Cancelling.

Optional load-sharing redundant power supplies provide continuous operation if one power supply fails. Each supply can support the complete chassis load, including four installed M7XC modems.

Platform: High-density M7XC multi-modem chassis
Rack Size: Standard 19-inch, 1RU
Modem Capacity: Up to four M7XC software-defined modems
Modulator Capacity: Up to four independent modulators
Demodulator Capacity: Up to 64 independent demodulators
Aggregate Capacity: Up to 400 Msps TX and 400 Msps RX
Network Architectures: Point-to-point, point-to-multipoint, mesh and hybrid
User Data Interface: One RJ-45 Ethernet port per installed modem
Monitor and Control: One RJ-45 Ethernet port per installed modem
RF Connections: Independent SMA female TX and RX connections
Reference Frequency: Internal or external 10/50 MHz
Power Input: 80–264 VAC
Power Supplies: Up to two load-sharing redundant supplies
Operating Temperature: -20°C to +60°C
Dimensions: 19 × 19.5 × 1.75 inches
Weight: Less than 15 lb fully populated

Key Features:

• Up to four M7XC modems in one 1RU chassis

• Up to four high-speed modulators and 64 demodulators

• 400 Msps aggregate transmit and receive capacity

• Optional dual-input, load-sharing redundant power

• Independent RF, data and management connections for every modem

• Front-panel modem and system status indicators

• Compatible with all supported M7XC waveforms and operating modes

• Supports DVB-S2X, FlexLDPC, ACM and spread-spectrum configurations

• Supports AES-128/256 TRANSEC and carrier-cancelling options

• Designed for hubs, teleports, cellular backhaul and IP trunking
