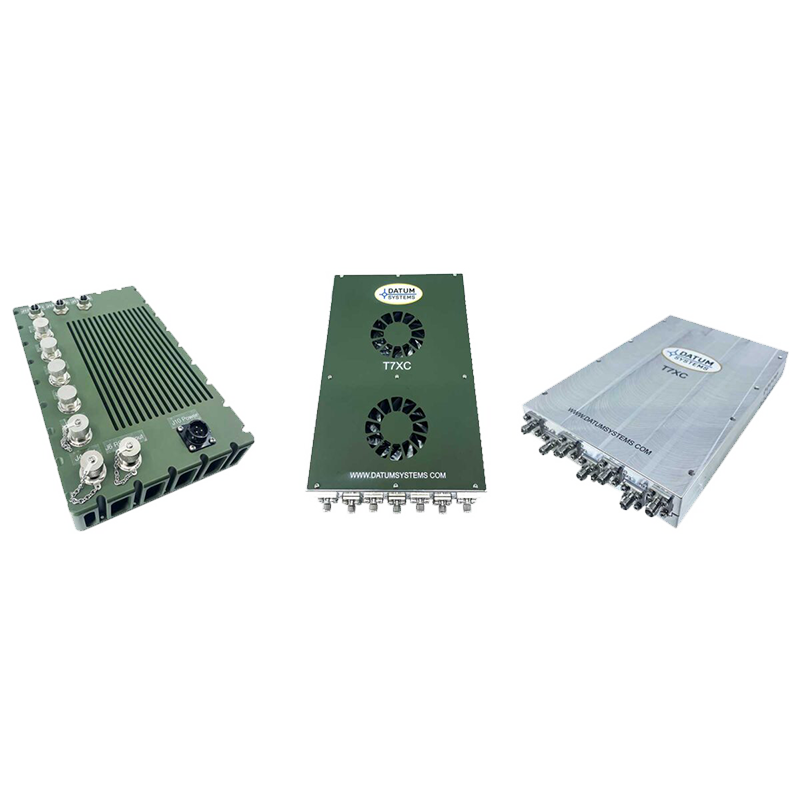

The Datum Systems T7XC and T7XC-ODU are compact, software-defined troposcatter modems engineered for high-capacity beyond-line-of-sight communications. Available in embedded indoor and rugged IP65 outdoor configurations, the platform supports fixed, mobile, offshore and tactical troposcatter terminals.

The T7XC provides one or two independently modulated transmit outputs and as many as four receive inputs for single, dual or quad diversity operation. Datum’s patented frequency-domain combiner and equalizer delivers robust multipath performance across difficult troposcatter links.

Supporting data rates up to 529.9 Mbps, symbol rates up to 98 Msps and modulation through 256APSK, the T7XC uses DVB-S2X waveforms with Adaptive Coding and Modulation to optimize throughput as link conditions change. Integrated spectrum analyzers on all four receive ports simplify link monitoring, troubleshooting and terminal commissioning.

Frequency Range: 950–2250 MHz L-band
Transmit Outputs: One or two independently modulated outputs
Receive Inputs: Up to four independent inputs
Diversity Modes: Single, dual and quad diversity
Data Rate: Up to 529.9 Mbps
Symbol Rate: 256 ksps–98 Msps
Waveform: DVB-S2X
Modulation: QPSK, 8PSK, 8APSK, 16APSK, 32APSK, 64APSK, 128APSK and 256APSK
FEC Block Sizes: 16k short and 64k normal
Carrier Roll-Off: 20%, 25%, 30%, 35%, 40% and 45%
Adaptive Coding and Modulation: Supported
Combining Technology: Frequency-domain maximal-ratio combiner/equalizer
Ethernet Interface: Up to four Gigabit Ethernet ports
Network Features: VLAN, QoS, DHCP, Strict, WRED and custom priorities
Management: Web browser and SNMP
Encryption: AES-128, AES-192 and AES-256
Reference Frequency: Selectable 10 or 50 MHz
Input Power: 15–55 VDC, less than 80 W
Operating Temperature: -40°C to +70°C
T7XC Dimensions: 7 × 4.6 × 1 or 1.5 inches, depending on configuration
T7XC-ODU Rating: IP65
T7XC-ODU Dimensions: 11.2 × 7 × 3 inches

Key Features:

• Software-defined DVB-S2X troposcatter modem

• Data rates up to 529.9 Mbps

• One or two frequency-independent transmit carriers

• Up to four receive ports

• Single, dual and quad diversity operation

• Patented frequency-domain combiner and equalizer

• Superior multipath performance

• Fast Adaptive Coding and Modulation

• Modulation through 256APSK

• Automatic link power control

• Integrated spectrum analyzers on all four receive ports

• Consolidated live four-port spectrum display

• Packet, frame, traffic and link-performance statistics

• Compact SWaP-optimized indoor modem

• Rugged IP65 outdoor modem configuration

• Optional outdoor package with up to 40 W C-band BUC

• MIL-STD-810G/H environmental compliance

• Built-in 1:1 redundancy control
