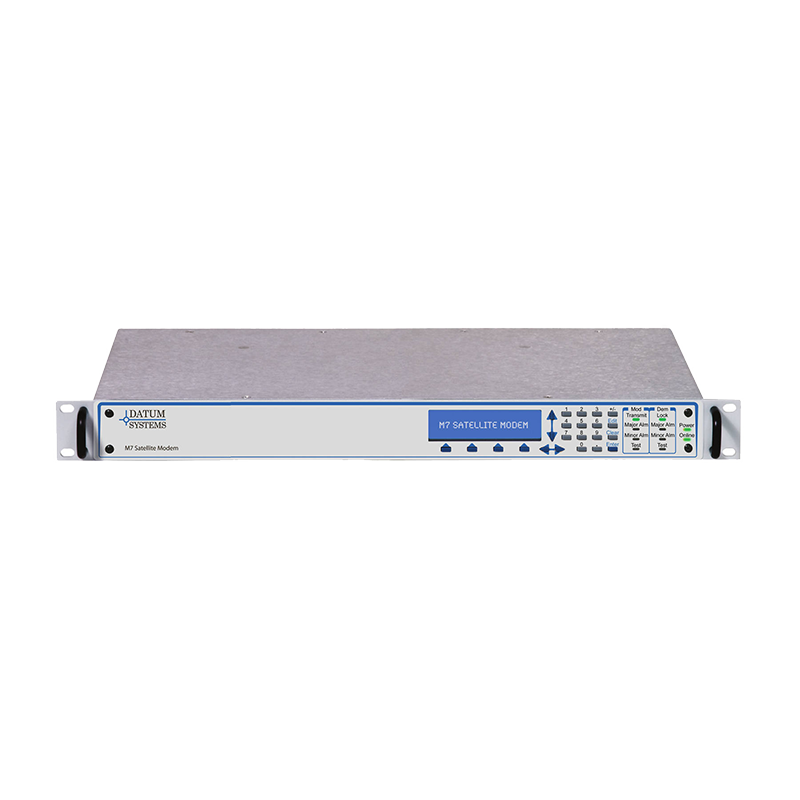

Datum M7LT L-Band Mesh Satellite Modem with 16 Demodulators

Datum M7LT L-Band Mesh Satellite Modem with 16 Demodulators

The Datum Systems M7LT Mesh is a compact L-band mesh satellite modem that combines one SCPC modulator with as many as 16 independent demodulators in a single 1RU chassis. Designed for SCPC mesh, point-to-multipoint and hybrid mesh networks, it provides an efficient platform for satellite hubs and remote terminals.

The M7LT Mesh supports transmit data rates up to 39 Mbps and aggregate receive data rates up to 75 Mbps. FlexLDPC forward error correction, Adaptive Coding and Modulation, AUPC and carrier roll-off factors as low as 5% help optimize bandwidth utilization and maintain reliable links under changing conditions.

All transmit and receive channels connect to the LAN through an integrated five-port Gigabit Ethernet Layer 2 bridge. Additional Datum M7D multi-demodulator units can be added when more receive channels are required.

Transmit Frequency Range: 950–2150 MHz
Receive Frequency Range: 950–2250 MHz
Configuration: One modulator and up to 16 demodulators
Operating Modes: SCPC mesh and continuous transmit/receive
Transmit Data Rate: 16 kbps–39 Mbps
Receive Data Rate: 16 kbps–75 Mbps per channel and aggregate
Receive Symbol Rate: 32 ksps–72 Msps per channel and aggregate
Receive Bandwidth: 80 MHz
Modulation: BPSK, QPSK, 8APSK and 16QAM
FEC: FlexLDPC with 2k, 4k, 8k and 16k block sizes
Carrier Roll-Off: 5%, 10%, 15%, 20%, 25%, 30% and 35%
Network Architectures: SCPC mesh, point-to-multipoint and hybrid mesh
Ethernet Interface: Five RJ-45 Gigabit Ethernet ports plus optional SFP
Ethernet Protocol: Layer 2 bridge
Management: Web browser, SNMP, RS-232 and RS-485
Input Power: 90–264 VAC or optional 20–60 VDC
BUC Power: Available up to 240 W, depending on configuration
LNB Power: Selectable off, 13 VDC or 18 VDC
Reference Frequency: Optional high-stability internal 10 MHz reference
Operating Temperature: 0°C to +50°C
Dimensions: 19 × 11 × 1.75 inches
Weight: 10 lb fully configured

Key Features:

• One L-band modulator with up to 16 receive channels

• Complete mesh satellite modem in a single 1RU chassis

• Supports SCPC mesh and hybrid mesh/point-to-multipoint networks

• FlexLDPC with multiple block sizes and granular code rates

• Adaptive Coding and Modulation

• Up to 39 Mbps transmit and 75 Mbps aggregate receive data rates

• Sharp carrier roll-off factors down to 5%

• Integrated five-port Gigabit Ethernet Layer 2 bridge

• QoS and selectable VLAN support

• Optional Gigabit Ethernet or fiber SFP port

• Built-in 1:1 redundancy control

• Integrated BUC and LNB power options

• Expandable with M7D multi-demodulator units

• Local and remote web-browser and SNMP management
