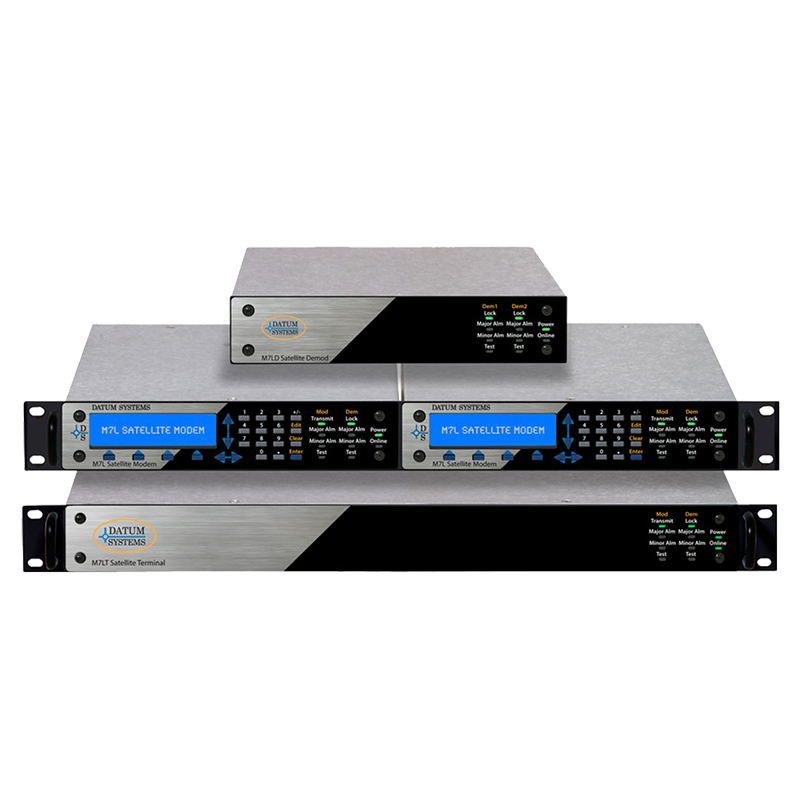

The Datum Systems M7L and M7LT are high-speed DVB-S2 and DVB-S2X satellite modems designed for bandwidth-efficient IP trunking, cellular backhaul, enterprise and Dynamic SCPC networks. The modems deliver data rates up to 350 Mbps and symbol rates up to 72 Msps, enabling efficient use of wide satellite transponders.

Operating across the 950–2150 MHz L-band frequency range, with an optional 50–180 MHz IF configuration, the M7L and M7LT support QPSK through 64APSK modulation. Optional 128APSK and 256APSK provide additional flexibility for high-throughput satellite applications.

Adaptive Coding and Modulation dynamically selects the optimal MODCOD according to current link conditions, improving throughput and link availability. Carrier roll-off factors as low as 5% increase spectral efficiency, while optional Smart Carrier Cancelling allows two similar carriers to share the same transponder spectrum for approximately 50% bandwidth savings.

Frequency Range: 950–2150 MHz; optional 50–180 MHz
Data Rate: 256 kbps–350 Mbps
Symbol Rate: 256 ksps–72 Msps
Standards: DVB-S2 and DVB-S2X
Modulation: QPSK, 8PSK, 8QAM, 16APSK, 32APSK and 64APSK
Optional Modulation: 128APSK and 256APSK
FEC: LDPC inner code and BCH outer code
Carrier Roll-Off: 5%, 10%, 15%, 20%, 25%, 30% and 35%
Adaptive Coding and Modulation: Supported
Smart Carrier Cancelling: Optional
Data Interface: Gigabit Ethernet Layer 2 bridge
Encapsulation: DVB Generic Stream Encapsulation
Network Protocols: IPv4, IPv6, VLAN and MPLS compatible
Ethernet Ports: Four RJ-45 ports plus one SFP port
Management: Web browser, SNMP v2c, RS-232 and RS-485
Network Architectures: Point-to-point, point-to-multipoint, mesh, unicast and multicast
M7L Dimensions: 8.5 × 11 × 1.75 inches; two units fit in 1RU
M7LT Dimensions: 19 × 11 × 1.75 inches; standard 1RU

Key Features:

• High-speed DVB-S2 and DVB-S2X satellite communications

• Up to 350 Mbps data rate and 72 Msps symbol rate

• Full range of DVB-S2X MODCOD selections

• Adaptive Coding and Modulation for changing link conditions

• Sharp carrier roll-off factors down to 5%

• Optional Smart Carrier Cancelling

• Efficient DVB-GSE Ethernet encapsulation

• Four-port Gigabit Ethernet switch with optional fiber SFP

• QoS, VLAN filtering and MPLS compatibility

• Optional integrated BUC and LNB power

• Optional high-stability 10 MHz reference

• Compact M7L and rack-mount M7LT configurations

• Local and remote web-browser and SNMP management
