Datum M7L & M7LT L-Band Sat-Modem with High Speed DVBS2X

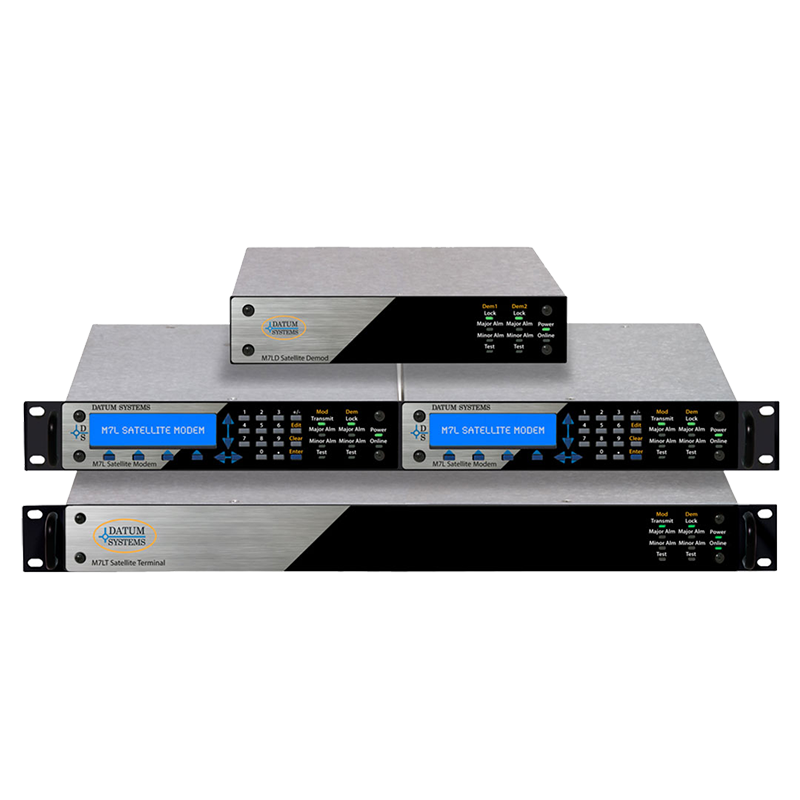

Datum Systems M7L & M7LT DVB-S2X High-Speed L-Band Modems

The Datum Systems M7L and M7LT are high-performance L-Band satellite modems supporting DVB-S2 and DVB-S2X waveforms for fixed, mobile, mesh, and point-to-multipoint SATCOM networks. Operating from 950–2150 MHz (with optional IF operation), these modems deliver data rates up to 350 Mbps using advanced modulation up to 64APSK and ultra-low roll-off factors down to 5%. With full ACM support, optional Smart Carrier Cancelling, integrated BUC/LNB power, and a high-stability 10 MHz OCXO reference, the M7L/M7LT platform maximizes spectral efficiency while reducing latency and operational cost.

Frequency Band: 950–2150 MHz (50–180 MHz optional IF)

Data Rate Range: 256 kbps to 350 Mbps

Symbol Rate Range: 256 ksps to 72 Msps (1 bps steps)
Modulation: QPSK, 8PSK, 8QAM, 16APSK, 32APSK, 64APSK
Optional Modulation: 128APSK, 256APSK
FEC: DVB-S2 / DVB-S2X LDPC (inner), BCH (outer)
Filter Roll-Off: 5, 10, 15, 20, 25, 30, 35 %
ACM: Supported (DVB-S2 & DVB-S2X)
Smart Carrier Cancelling: Optional
10 MHz Reference: Internal OCXO, typ. –3 dBm
Reference Stability: 1 × 10⁻⁸ OCXO, 2 × 10⁻⁷/year aging
BUC Power (M7LT):
    • 24 VDC up to 120 W (AC models)
    • 48 VDC up to 200 W (DC models)
LNB Power: Selectable Off / 13 V / 18 V
Ethernet Interface: E7-GSE Express Ethernet (Layer-2 Bridge, VLAN, QoS)
Encapsulation: DVB GSE per ETSI TS 102 606
Management: Web GUI, SNMP v2c, RS-232 / RS-485
Operating Temperature: 0 °C to +50 °C
Storage Temperature: –20 °C to +70 °C
Form Factor:
    • M7LT: 1RU, 19-inch rack mount
    • M7L: Compact desktop (2 units per 1RU)

Weight:
    • M7LT: typ. 10 lb fully configured
    • M7L: < 5 lb fully configured
Compliance: CE, RoHS, ETSI EN 301 489, EN60950
