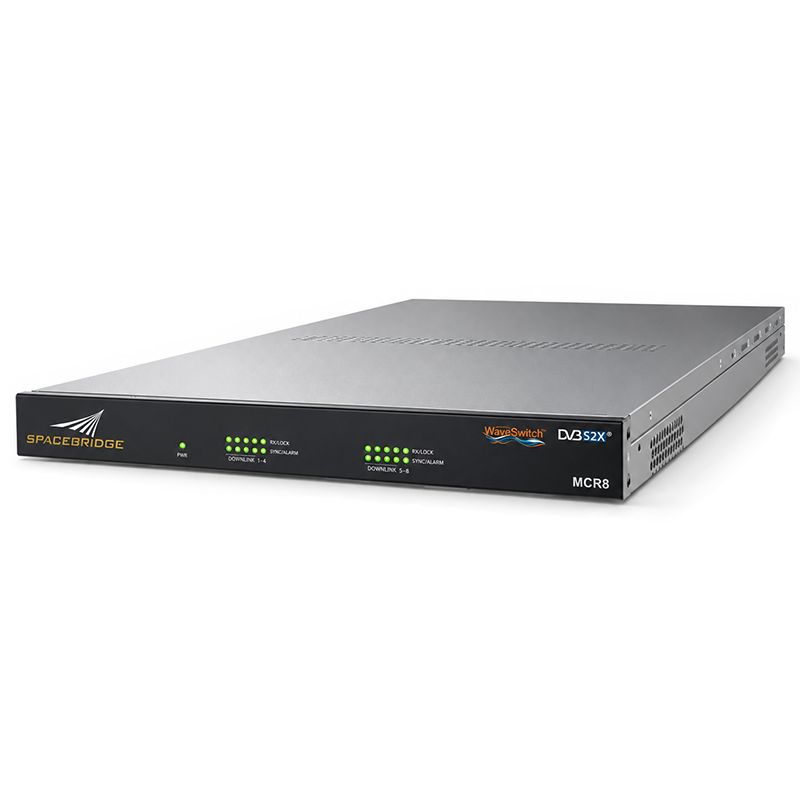

SpaceBridge MCR8 8-Channel L-Band DVB-S2X SCPC Receiver
The SpaceBridge MCR8 is an eight-channel L-band SCPC satellite receiver providing hub-side aggregation for up to eight compatible U7800 terminals or SBM-90X modems. It supports eight independent receive channels through a single RF input, with DVB-S2X modulation, symbol rates up to 125 Msps per channel and aggregate receive throughput up to 2 Gbps. Layer 2 and Layer 3 transport support ASAT WaveSwitch services, cellular backhaul, broadband trunking and enterprise satellite networks.
Specifications
• Receive Channels: 8 independent SCPC receivers
• IF Frequency Range: 950–2400 MHz
• IF Input Connector: F-type, 75 Ω; optional N-type, 50 Ω
• Symbol Rate Range: 1–125 Msps per channel
• Standard and Modulation: DVB-S2X; QPSK through 256APSK
• Aggregate Receive Throughput: Up to 2 Gbps
• User Interfaces: 2 × Gigabit Ethernet ports
• Installation: 19-inch rack mount, 1RU
• Dimensions: 435 × 45 × 737 mm (W × H × D)
• AC Input: 100–240 VAC, 50–60 Hz
• Power Consumption: 120 W
Key Features
• Eight SCPC receive channels through one L-band input
• ACM, VCM and CCM operating modes
• Layer 3 support for ASAT WaveSwitch services
• Layer 2 support for SBM-90X SCPC services
• Web GUI, SNMP v1/v2/v3 and CLI management
Download the datasheet from the Attachments tab for complete technical specifications.
SpaceBridge 16A-0XMCR8-100
