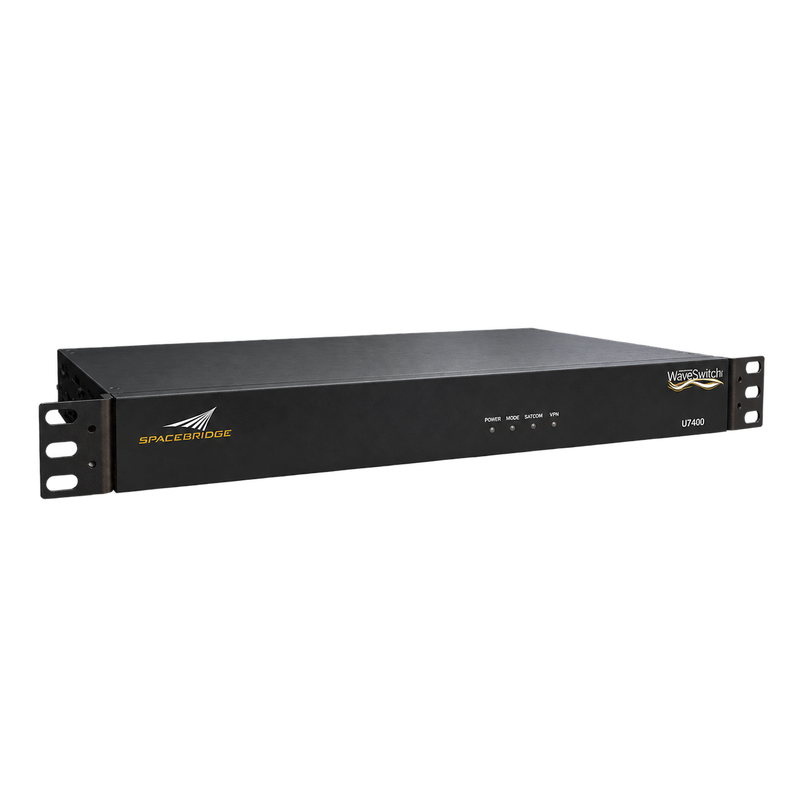

SpaceBridge U7400 ASAT MF-TDMA/SCPC Satellite Modem

SpaceBridge U7400 ASAT MF-TDMA/SCPC Satellite Modem

The SpaceBridge U7400 is a rackmount VSAT satellite modem for broadband trunking, cellular backhaul, enterprise connectivity and mobile communications. Supporting download and upload speeds up to 100 Mbps, it operates in hub-less point-to-point SCPC links or ASAT hub-spoke networks. WaveSwitch™ technology automatically switches between MF-TDMA and SCPC return links as traffic demand changes, while built-in acceleration, compression and QoS improve satellite bandwidth efficiency.

Key Specifications

• Download Speed: Up to 100 Mbps

• Upload Speed: Up to 100 Mbps

• Forward Link: DVB-S2/S2X ACM with GSE encapsulation

• Forward Link Modulation: QPSK to 256APSK

• Receive Channel Bandwidth: Up to 500 MHz

• Return Link: MF-TDMA and SCPC with automatic WaveSwitch™ switching

• MF-TDMA Symbol Rate: 64–8192 ksps

• MF-TDMA Modulation: BPSK, QPSK, 8PSK and 16QAM

• SCPC Symbol Rate: 500 ksps–25 Msps

• SCPC Modulation: DVB-S2, QPSK to 32APSK

• RX/TX Frequency Range: 950–2150 MHz

• IF Connectors: F-type, 75 Ω

• Network Interfaces: Gigabit Ethernet traffic interface and separate management port

• Power Supply: 100–240 VAC, 50/60 Hz; optional −48 VDC

• Power Consumption: 35 W, excluding RF equipment and BUC power

• Form Factor: Indoor 1RU rackmount

• Operating Temperature: 0–50°C

Key Features

• Supports hub-less point-to-point links and ASAT hub-spoke networks.

• WaveSwitch™ adapts return-link operation to traffic demand and scheduled triggers.

• TCP/IP and HTTP acceleration with built-in GTP optimization.

• Layer 2 and Layer 3 networking with VLAN, VRF, NAT and DHCP support.

• Integrated QoS, uplink power control and network-wide PowerACM.

• OpenAMIP antenna support for SATCOM on the move.

• Optional IPsec VPN encryption.

Download the datasheet under Attachments for detailed specifications.
