iDirect ASM3315 Series Satellite Modem

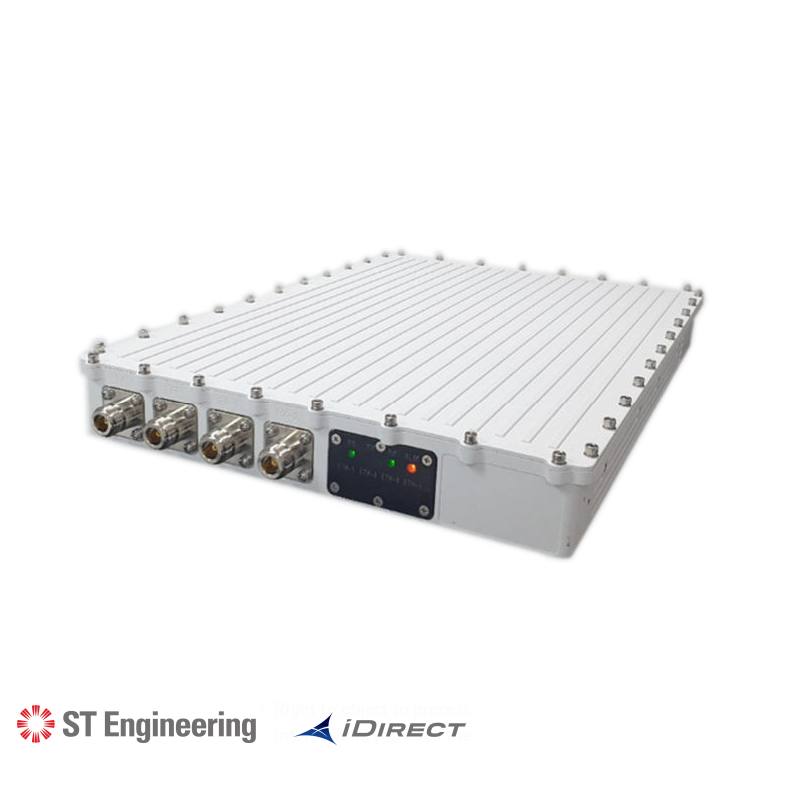

iDirect ASM3315 Series Outdoor Satellite Modem

The iDirect ASM3315 Series Outdoor Satellite Modem is a rugged, high-performance HTS VSAT modem designed for mobility and outdoor deployments in harsh environments.

Supporting Evolution, Velocity, and Dialog platforms, the ASM3315 enables flexible network integration while delivering high throughput performance for government, defense, broadcast, and mobility applications.

Engineered for COTM (Communications-On-The-Move) and HTS spot beam satellites, this modem combines advanced waveform support, strong security, and an IP67 weatherproof enclosure for reliable operation in demanding conditions.

Key Features & Specifications

Outdoor HTS VSAT modem (3315 series)

Supports Evolution, Velocity, and Dialog platforms

DVB-S2 (up to 45 Msps) / DVB-S2X (up to 500 Msps) outbound

Return technologies: A-TDMA, SCPC, Mx-DMA (MRC/HRC)

Peak throughput up to 120 Mbps DL / 48 Mbps UL

Supports MODCODs up to 64APSK

Designed for mobility and COTM applications

IP67 waterproof rugged outdoor design

256-bit AES encryption (optional)

OpenAMIP and GXT support for mobility integration

Embedded TCP acceleration, GTP acceleration, header compression

ATMEL chip for authentication

Key Specifications

Frequency: TX 950–2400 MHz, RX 950–2150 MHz

Interfaces: Four Gigabit Ethernet ports

RF Connectors: N-Type Female (50Ω)

BUC Power: 24VDC or 43–44VDC selectable

Power Consumption: ~30W max

Operating Temp: -25°C to +60°C

Enclosure: IP67 weatherproof

Size: 377 x 267 x 43 mm

Weight: 3.5 kg
