Datum M7 & M7L Compact IF and L-Band Satellite Modems

Datum M7 & M7L Compact IF and L-Band Satellite Modems

The Datum Systems M7 and M7L are compact, modular satellite modems engineered for bandwidth-efficient SCPC communications. The M7 operates across the 50–180 MHz IF frequency range, while the M7L supports 950–2150 MHz L-band, providing flexible configurations for satellite hubs and remote terminals.

Both modems support data rates from 1.2 kbps to 59.04 Mbps, advanced FlexLDPC coding, Adaptive Coding and Modulation and carrier roll-off factors as low as 5%. Datum’s patented Smart Carrier Cancelling technology allows two similar carriers to occupy the same transponder spectrum, providing approximately 50% bandwidth savings.

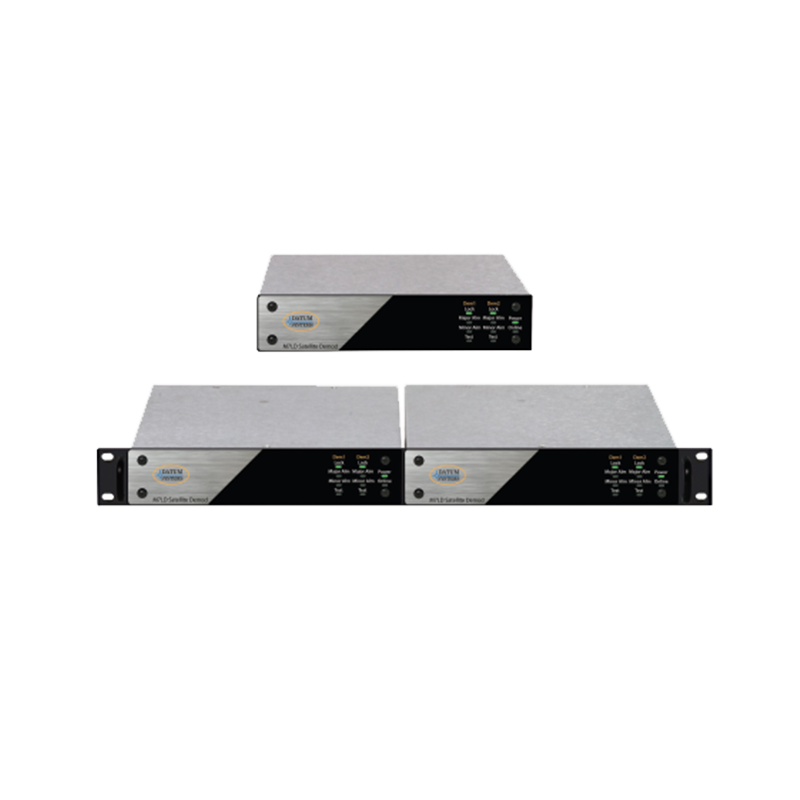

The half-rack 1RU platform allows two modems to be mounted side by side in a single rack space. Available Ethernet, managed IP, serial, HSSI and dual G.703/E1 interfaces support cellular backhaul, enterprise networks, E1 trunking and on-the-move satellite communications.

M7 Frequency Range: 50–180 MHz IF
M7L Frequency Range: 950–2150 MHz L-band
Operating Mode: Continuous SCPC transmit and receive
Data Rate: 1.2 kbps–59.04 Mbps, adjustable in 1 bps steps
Symbol Rate: 2.4 ksps–14.76 Msps, adjustable in 1 sps steps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8QAM and 16QAM
FEC: FlexLDPC, Viterbi, Reed-Solomon, TCM and optional TPC
Carrier Roll-Off: 5%, 8%, 10%, 15%, 20%, 25%, 30%, 35% and 40%
Interface Options: Ethernet, managed IP, serial, HSSI and dual G.703/E1
Ethernet Interface: Four Gigabit Ethernet ports plus optional SFP
IP Operating Modes: Bridge and router
IP Throughput: Up to 70,000 packets per second
Management: Web browser, SNMP, RS-232 and RS-485
Input Power: 8–36 VDC; optional -48 VDC
Operating Temperature: 0°C to +50°C
Dimensions: 8.5 × 11 × 1.75 inches
Weight: Less than 5 lb fully configured

Key Features:

• Compact IF and L-band satellite modem configurations

• Continuous SCPC transmit and receive operation

• Advanced FlexLDPC with selectable block sizes and code rates

• Data rates up to 59.04 Mbps

• Adaptive Coding and Modulation

• Patented Smart Carrier Cancelling

• Approximately 50% carrier bandwidth savings

• Sharp carrier roll-off factors down to 5%

• Low latency and fast carrier acquisition

• Advanced managed IP interface with bridge and router modes

• Four-port Gigabit Ethernet switch with optional SFP

• Optional IP acceleration, compression and optimization

• Serial, HSSI and dual G.703/E1 interface options

• Two half-rack modems fit within a single 1RU rack space

• Built-in 1:1 redundancy control
