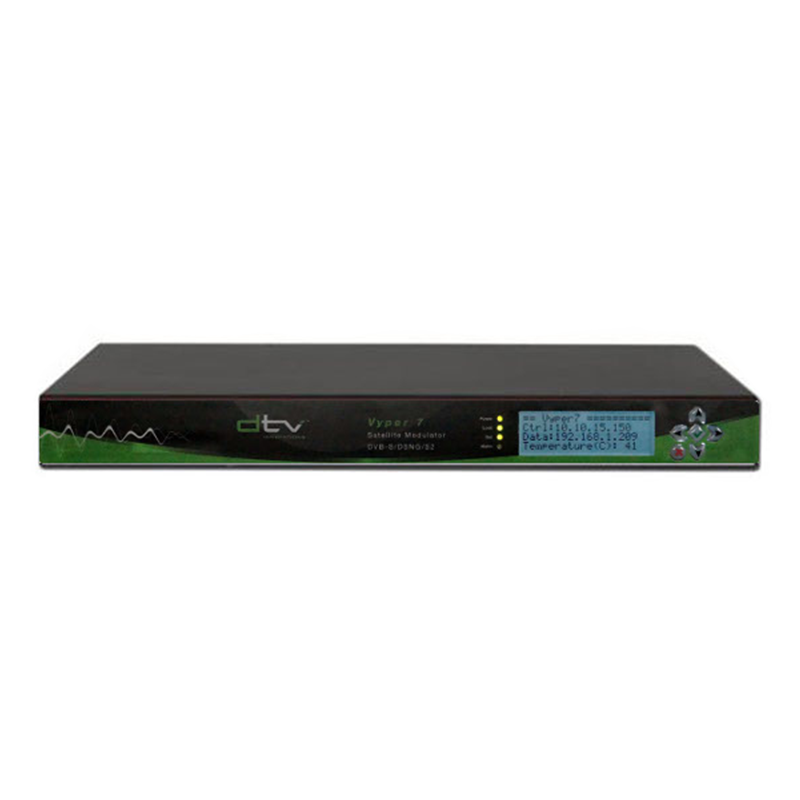

DTV Innovations Vyper 7 DVB-S/S2/S2X Satellite Modulator

DTV Innovations Vyper 7 DVB-S/S2/S2X Satellite Modulator

The DTV Innovations Vyper 7 is a professional DVB satellite modulator supporting DVB-S, DVB-DSNG and DVB-S2 as standard, with DVB-S2X broadcast and DSNG profiles available through an optional software license. Designed for satellite news, sports and multiplexed video contribution, it supports applications ranging from low-data-rate transmissions to full-transponder operation.

The Vyper 7 accepts two DVB-ASI inputs and up to four MPEG transport streams over IP. It supports ASI data rates from 100 kbps to 200 Mbps, TSoIP data rates from 200 kbps to 200 Mbps, and symbol rates from 0.05 to 72 Mbaud. Multistream operation, flexible roll-off factors from 5% to 35%, DVB Carrier ID and optional BISS encryption provide extensive configuration flexibility.

L-band and IF-band outputs are included as standard. The L-band output features switchable 10 MHz reference insertion for driving an external BUC. An integrated web interface, SNMP, RS232 control, front-panel controls, alarm relays and dry-contact management enable convenient local and remote operation. Software licensing allows field upgrades as requirements evolve.

Key Features

• Professional DVB satellite modulator

• DVB-S, DVB-DSNG and DVB-S2 modes included as standard

• Optional DVB-S2X broadcast and DSNG profiles

• ASI data rates from 100 kbps to 200 Mbps

• TSoIP data rates from 200 kbps to 200 Mbps

• Symbol rates from 0.05 to 72 Mbaud

• Two MPEG transport stream inputs over DVB-ASI

• Up to four MPTS inputs over Ethernet

• Supports 188-byte and 204-byte MPEG transport-stream packets

• RTP and UDP transport over IP

• SMPTE 2022 support

• Ethernet input can protect the ASI input

• Multistream operation with up to four streams

• Constant Coding and Modulation

• Variable Coding and Modulation

• Seamless Adaptive Coding and Modulation

• QPSK, 8PSK, 16QAM, 16APSK and 32APSK modulation support

• Optional DVB-S2X 64APSK modulation

• DVB-S2 short and normal frame support

• Selectable pilot operation

• Physical-layer scrambling codes

• Flexible roll-off factors from 5% to 35%

• DVB Carrier ID compliant with ETSI TS 103 129

• Optional BISS Mode 0, Mode 1 and Mode E encryption

• L-band output from 950 to 2150 MHz

• IF-band output from 50 to 180 MHz

• Frequency adjustment in 1 Hz steps

• Output-level adjustment in 0.1 dB steps

• Switchable 10 MHz reference insertion on the L-band output

• High-stability internal 10 MHz reference

• External 10 MHz reference input

• Cable-tilt correction

• Input stream format and bitrate monitoring

• Integrated web-interface configuration and monitoring

• SNMP v2c remote monitoring and control

• RS232 port with SCPI control

• Front-panel keyboard and display

• Alarm relay interface

• Dry-contact management for 1+1 redundancy

• Two 10/100/1000BASE-T Ethernet ports

• Field-upgradable through software licenses

• Fast startup and low power consumption

• Compact 1 RU rack-mount chassis

• Maximum power consumption of 30 W
