Norsat ULC-0-50S

$1,100.00

Universal LNB Controller

Reference: No reference

Connector: SMA Type 50 Ohm

Control Interface: Switch Control Only

Quantity

Last items in stock

Security policy

Delivery policy

Return policy

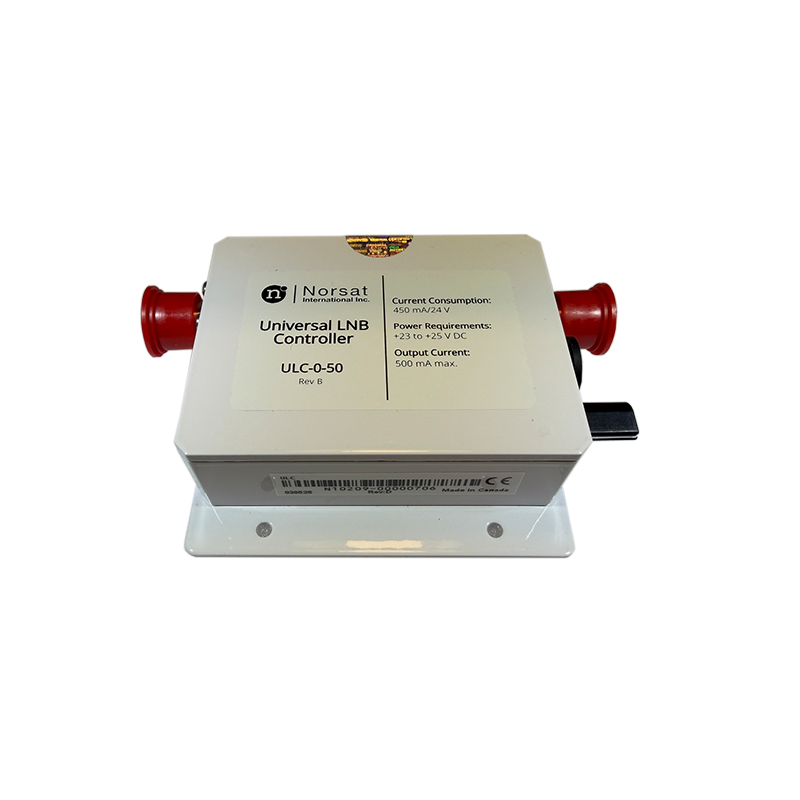

Norsat ULC-0-50s Universal LNB Controller (SMA, No Reference)

The Norsat ULC-0-50s is a universal LNB controller featuring 50 Ohm SMA connectors and switch-based control with optional line length compensation. It delivers reliable 13V/18V output and tone generation in a rugged IP66 enclosure—ideal for compact SATCOM systems.

Output Voltages: 12.5 – 13.5 VDC / 17.3 – 18.7 VDC
Tone Frequency: 20 – 24 kHz
Tone Amplitude: 0.55 – 0.9 Vpp
Reference Signal: None
Control Interface: Switch, cable, and LLC (logic levels: L 0–0.8 V, H 2.5–7 V)
Connector Type: 50 Ohm SMA Connector
Output VSWR: max. 2.0:1
Output Current: max. 500 mA
Power Supply: +23 to +25 VDC
Current Consumption: 450 mA @ 24 VDC
IP Rating: IP66
Operating Temp: –30°C to +60°C
Dimensions: 130 × 95 × 30 mm
Weight: 0.66 kg
