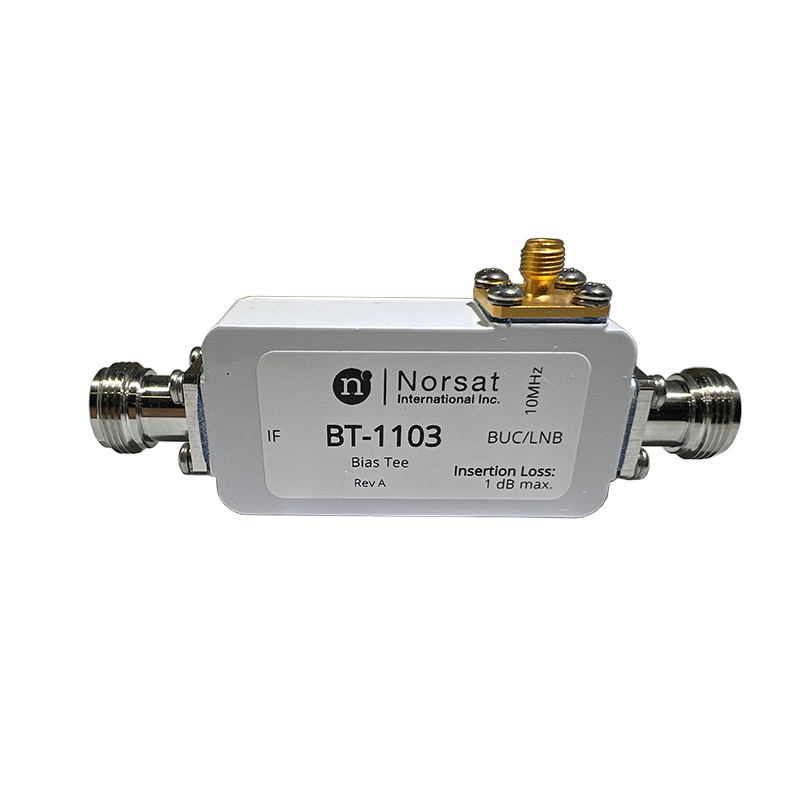

Norsat BT-1103 L-Band Bias Tee

Norsat BT-1103 L-Band Bias Tee

The Norsat BT-1103 is a rugged L-Band bias tee designed to inject DC and 10 MHz reference signals into RF lines with minimal loss. Featuring wide 950–2150 MHz passband, 50 Ω SMA reference input, and IP66 weatherproofing, it ensures reliable operation for SATCOM, broadcast, and communication systems deployed in harsh environments.

Frequency Band: L-Band
Pass Band: 950 – 2150 MHz
10 MHz Pass Band: 10 – 100 MHz
Insertion Loss: ≤ 1 dB
Input VSWR: 2.0 : 1 max Output VSWR: 2.0 : 1 max
RF Connectors: N-female (50 Ω) input / output

10 MHz Injection Port: SMA-female (50 Ω)
DC Connector: None
IP Rating: IP66
Operating Temperature: –30 °C to +50 °C
Storage Temperature: –40 °C to +70 °C
Dimensions (L × W × H): 105 × 55 × 25 mm
Weight: 0.17 kg
Country of Origin: Canada
ECCN: EAR99
