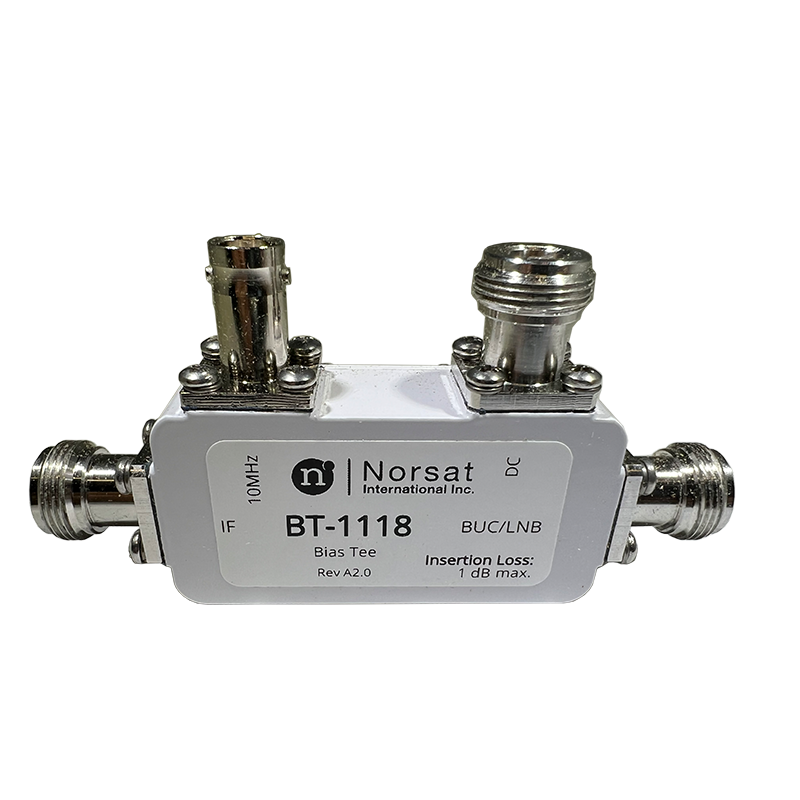

Norsat BT-1118 L-Band Bias Tee

Norsat BT-1118 L-Band Bias Tee

The Norsat BT-1118 is a compact L-Band bias tee designed to inject a 10 MHz reference signal and DC power into RF lines with minimal insertion loss. Featuring BNC-female reference, N-female 50 Ω RF/DC ports, and IP66 environmental protection, it ensures dependable performance for satellite and communication systems.

Frequency Band: L-Band
Pass Band: 950 – 2150 MHz
10 MHz Pass Band: 10 – 100 MHz
Insertion Loss: ≤ 1 dB
Input / Output VSWR: 2.0 : 1 max
10 MHz Injection: BNC-female (50 Ω)
DC Connector: N-female (50 Ω)
RF Input / Output: N-female (50 Ω)
IP Rating: IP66
Operating Temperature: –30 °C to +50 °C
Storage Temperature: –40 °C to +70 °C
Dimensions (L × W × H): 105 × 55 × 25 mm
Weight: 0.17 kg
Country of Origin: Canada
ECCN: EAR99
