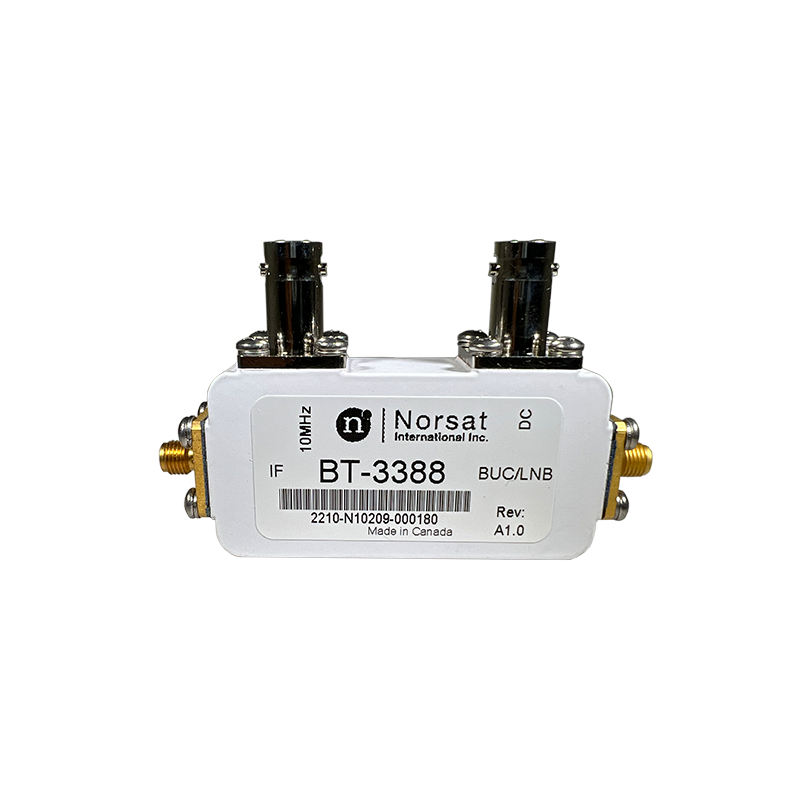

Norsat BT-3388 L-Band Bias Tee

Norsat BT-3388 L-Band Bias Tee

The Norsat BT-3388 is a compact L-Band bias tee supporting both DC feed and 10 MHz injection, each via BNC-female connectors. Operating from 950–2150 MHz, it provides ≤1 dB insertion loss and 2.0:1 VSWR for stable RF and reference distribution. Built in a rugged IP66-rated enclosure with dual SMA-female RF ports, it is ideal for outdoor SATCOM applications.

Frequency Band: 950–2150 MHz
10 MHz Pass Band: 10–100 MHz
Insertion Loss: ≤1 dB
VSWR: 2.0:1 max
10 MHz Port: BNC (F)
DC Port: BNC (F)
RF Input/Output: SMA (F), 50 Ω
IP Rating: IP66
Temp Range: –30 °C to +50 °C
Weight: 0.17 kg
Origin: Canada

ECCN: EAR99

HTS: 8517690000
