Norsat ULC-0-50-CL-6
$3,100.00
6-Band Universal LNB Controller
6-Band ULC Series
Reference: No Reference
Connector: N Type 50 Ohm
Control Interface: Control Interface Cable & Line Length Compensation with Switch
Security policy
Delivery policy
Return policy

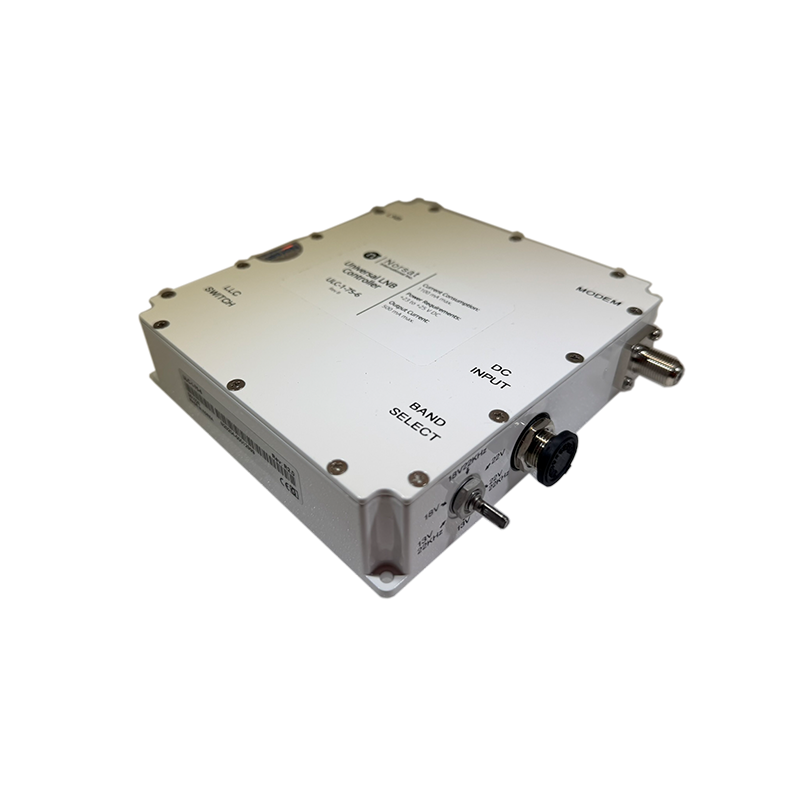

Norsat ULC-0-50-CL-6 Universal LNB Controller (No Ref, 6-Band)
The Norsat ULC-0-50-CL-6 is a 6-band, 50 Ohm LNB controller with N-type connectors. It provides 13V/18V output and tone signal with control interface cable and line length compensation, without any 10 MHz reference—housed in a rugged IP65 enclosure for reliable SATCOM operation.
Reference Signal: None
Output Voltages: 12.5 – 13.5 VDC / 17.3 – 18.7 VDC
Tone Frequency: 20 – 24 kHz
Tone Amplitude: 0.55 – 0.9 Vpp
Control Interface: Control cable & line length compensation with switch
Connector Type: 50 Ohm N-Connector
Output VSWR: max. 2.0:1
Output Current: max. 500 mA
Power Supply: +23 to +25 VDC
Current Consumption: 500 mA max.
IP Rating: IP65
Operating Temp: –40°C to +60°C
Dimensions: 100 × 120 × 30 mm
Weight: 0.67 kg
Made in South Korea
ULC-0-50-CL-6
- Control Interface
- Control Interface Cable
- Control Interface
- Line Length Compensation with Switch
- Reference Signal
- None
- Connector Type
- N (50 ohm)
