Norsat ULC-1-50S-CL-6

$4,200.00

6-Band Universal LNB Controller

6-Band ULC Series

Reference: 10 MHz Reference

Connector: SMA Type 50 Ohm

Control Interface: Control Interface Cable & Line Length Compensation with Switch

Quantity
Lead Time: 6 - 8 Weeks



Security policy



Delivery policy



Return policy

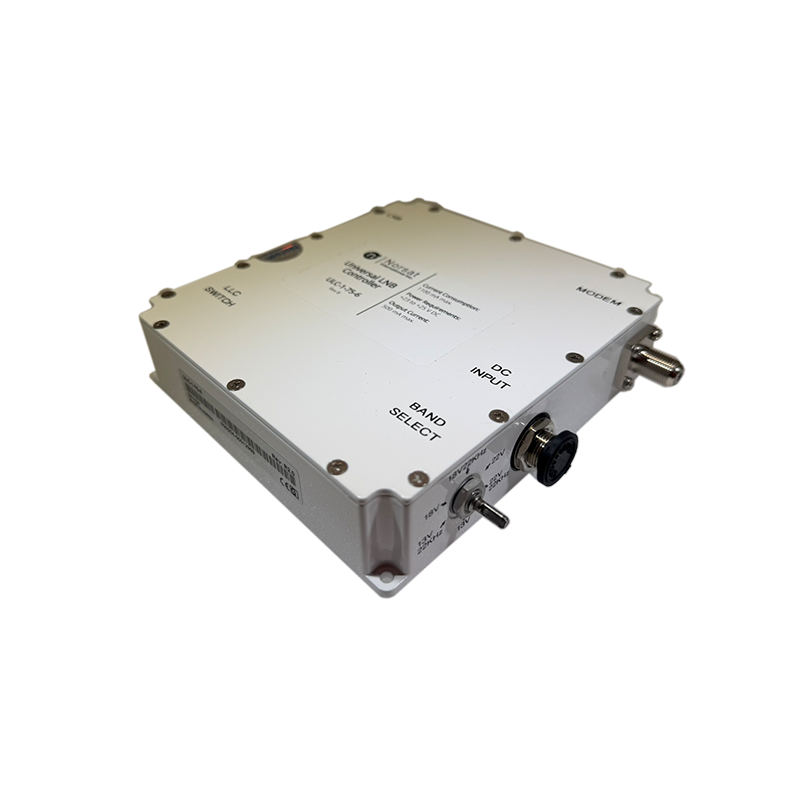

Norsat ULC-1-50S-CL-6 Universal LNB Controller with Internal Ref (6-Band)

The Norsat ULC-1-50S-CL-6 is a 6-band, 50 Ohm LNB controller with SMA connectors and an internal 10 MHz reference. It features a control interface cable and line length compensation, delivering 13V/18V output and tone signal in rugged IP65 housing for reliable SATCOM performance.

Reference Signal: Internal 10 MHz reference
Output Voltages: 12.5 – 13.5 VDC / 17.3 – 18.7 VDC
Tone Frequency: 20 – 24 kHz
Tone Amplitude: 0.55 – 0.9 Vpp
Control Interface: Control interface cable & line length compensation with switch
Connector Type: 50 Ohm SMA Connector
Output VSWR: max. 2.0:1
Output Current: max. 500 mA
Power Supply: +23 to +25 VDC
Current Consumption: 1100 mA max.
IP Rating: IP65
Operating Temp: –40°C to +60°C
Dimensions: 130 × 120 × 30 mm
Weight: 0.85 kg
Made in: Korea

ULC-1-50S-CL-6
Control Interface
Control Interface Cable
Control Interface
Line Length Compensation with Switch
Reference Signal
10 MHz internal
Connector Type
SMA (50 ohm)
