Norsat ULC-2S-75-6
$3,100.00
6-Band Universal LNB Controller
6-Band ULC Series
Reference: 10 MHz Injection Port (SMA Connector)
Connector: F Type 75 Ohm
Control Interface: Switch Control & Line Length Compensation with Switch
Security policy
Delivery policy
Return policy

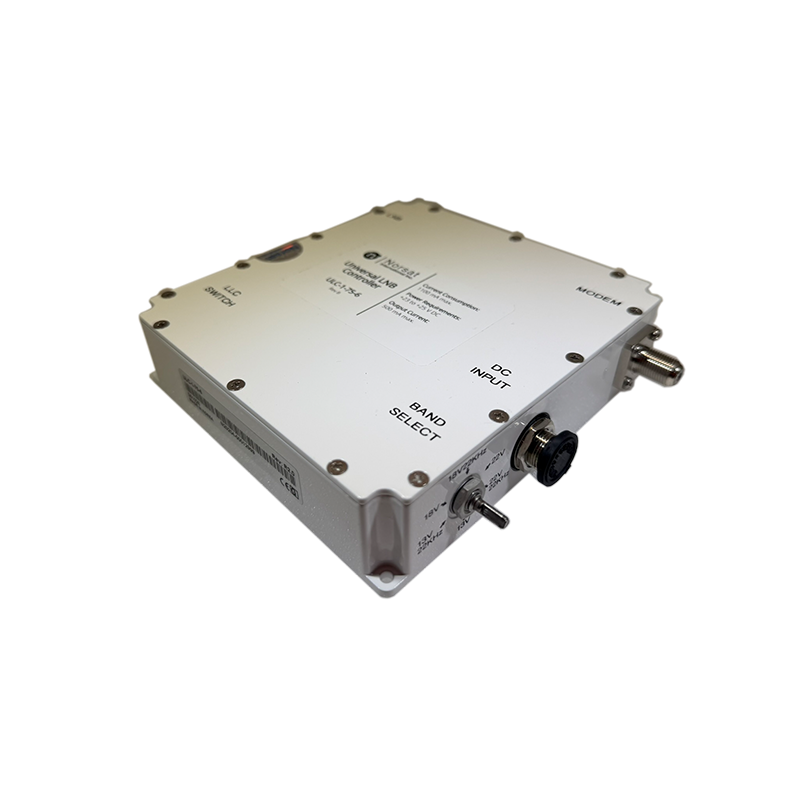

Norsat ULC-2S-75-6 Universal LNB Controller with 10 MHz Ref (6-Band)
The Norsat ULC-2S-75-6 is a 6-band, 75 Ohm LNB controller with F-type connectors and a 10 MHz reference injection port (SMA). It delivers 13V/18V output, tone signal, and switch-based control with line length compensation—ideal for SATCOM systems needing external reference.
Reference Signal: External 10 MHz reference (SMA injection port)
Output Voltages: 12.5 – 13.5 VDC / 17.3 – 18.7 VDC
Tone Frequency: 20 – 24 kHz
Tone Amplitude: 0.55 – 0.9 Vpp
Control Interface: Switch & line length compensation
Connector Type: 75 Ohm F-Connector
Output VSWR: max. 2.0:1
Output Current: max. 500 mA
Power Supply: +23 to +25 VDC
Current Consumption: 500 mA max.
IP Rating: IP65
Operating Temp: –40°C to +60°C
Dimensions: 100 × 120 × 30 mm
Weight: 0.67 kg
Made in: Korea
ULC-2S-75-6
- Control Interface
- Switch Control
- Control Interface
- Line Length Compensation with Switch
- Reference Signal
- External 10 MHz
- Connector Type
- F (75 ohm)
Specific References
6-Band Universal LNB Controller
6-Band ULC Series
Reference: 10 MHz Injection Port (SMA Connector)
Connector: F Type 75 Ohm
Control Interface: Switch Control & Line Length Compensation with Switch
