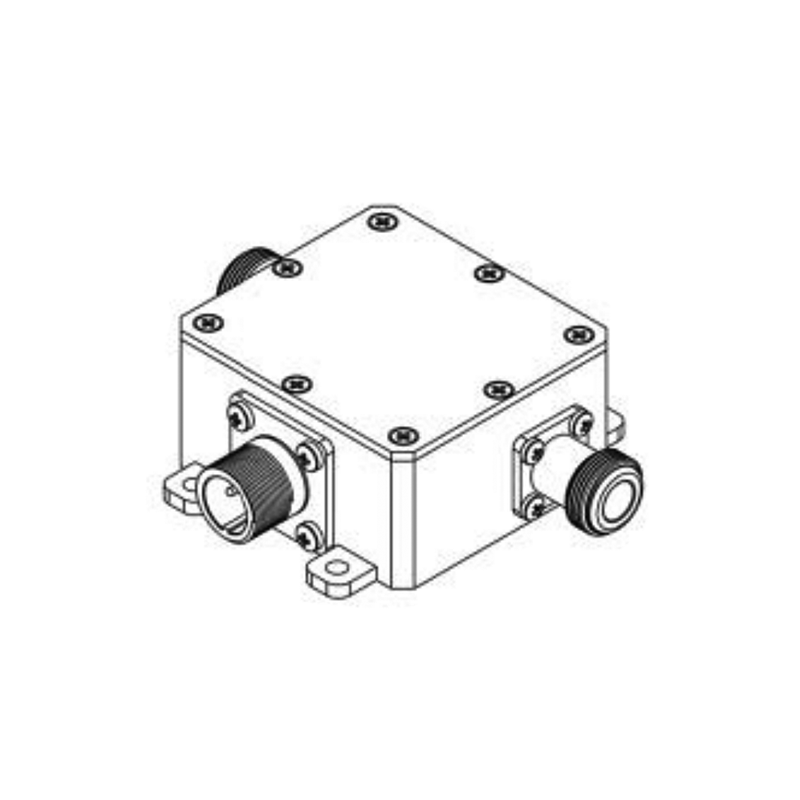

Actox ABT6AON / ABT6AOF Outdoor Power Injector - Bias Tee

Actox ABT6AON / ABT6AOF – Outdoor Power Injector - Bias Tee

This small and efficient unit provides DC supply to a BUC (DC power supply separate) in case a modem cannot supply sufficient power or doesn’t provide BUC power at all. The unit passes L-Band signal and 10MHz reference signal and injects up to 6A DC current.

Key Features

Bandwidth DC to 2 GHz

Operating temperature -45C - +80 deg C

IF and 10 MHz passed through

15 - 64 VDC power unit

Up to 6 Amps DC input

“N” or “F” RF interface options

Two-year warranty

Mechanical & Environmental

Dimensions: 61.4 × 56.4 × 31.0 mm

Weight: 200 g max.

Operating temperature: -50°C to +70°C
