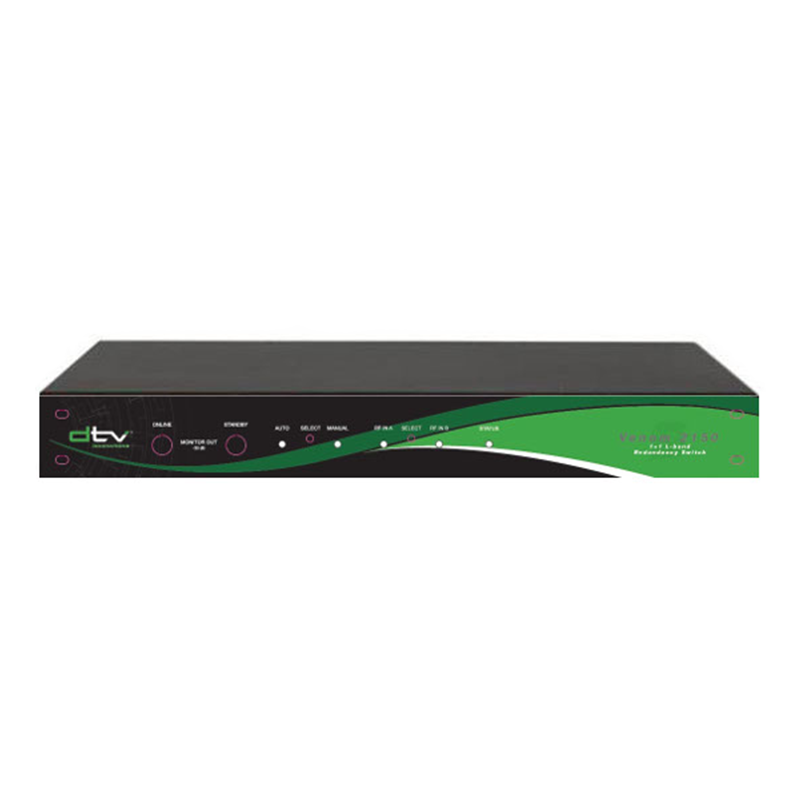

DTV Innovations Venom 2150 1+1 L-Band Redundancy Switch

DTV Innovations Venom 2150 1+1 L-Band Redundancy Switch

The DTV Innovations Venom 2150 is a professional 1+1 L-band redundancy switch that provides high-availability protection for satellite modulators operating from 950 to 2150 MHz. It is compatible with the DTV Innovations Vyper 7, Gryphon encoders equipped with internal modulators, and third-party modulators that provide alarm-contact outputs.

In automatic mode, the Venom 2150 monitors the connected alarm contacts and switches to the backup RF input when a failure is detected. Switching takes approximately 100 ms under typical conditions and no more than 250 ms. Manual switching is available through the front panel, while LED indicators display equipment health and identify the RF input routed to the primary output.

The unit provides two 50-ohm SMA RF inputs, rear-panel primary and standby outputs, and front-panel monitor outputs for both signal paths. Web-based control, SNMP v2c and alarm outputs support integration with external network-management systems. Optional DVB-S/S2 input-stream monitoring enables redundancy switching based on signal quality.

Dual independent power supplies with separate AC inputs allow continued operation following a single power-supply failure. With an MTBF exceeding one million hours, low power consumption and a compact 1 RU chassis, the Venom 2150 is designed for mission-critical satellite uplink and broadcast facilities.

Key Features

• Professional 1+1 L-band modulator redundancy switch

• Frequency Range: 950 to 2150 MHz

• Automatic and manual switching modes

• Switching initiated by modulator alarm-contact inputs

• Typical switching time of 100 ms

• Maximum switching time of 250 ms

• Compatible with DTV Innovations Vyper 7 modulators

• Compatible with Gryphon encoders equipped with internal modulators

• Supports third-party modulators with alarm contacts

• Two RF inputs with 50-ohm SMA female connectors

• Rear-panel primary and standby RF outputs

• Two rear-panel 50-ohm N-female output connectors

• Front-panel primary and standby monitor outputs

• Two front-panel 50-ohm BNC female monitor connectors

• Maximum safe RF input level of +10 dBm

• Input return loss of 15 dB minimum

• Port-to-port isolation of 45 dB minimum at 2.0 GHz

• Insertion loss below 3 dB

• Optional redundancy switching based on input signal quality

• Optional DVB-S/S2 input-stream monitoring

• Optional monitoring of QPSK, 8PSK, 16APSK and 32APSK signals

• Optional roll-off monitoring from 5% to 35%

• Front-panel manual switching control

• Front-panel LED status indicators

• Web-based configuration and control

• SNMP v2c remote monitoring and control

• Alarm outputs for external network-management systems

• Two 15-pin D-sub alarm connectors

• Dual independent power supplies

• Separate AC inputs for power redundancy

• MTBF greater than 1,000,000 hours

• 120/240 VAC, 50/60 Hz operation

• Power dissipation of 10 W

• Compact full-width 1 RU rack-mount chassis

• Dimensions: 19 × 5.5 × 1.75 inches

• Weight: 7 lb

• Operating temperature range from 0°C to +50°C
