MFC 16506

C-Band Bandpass Filter

Passband: 3.4–4.2 GHz

Quantity

Request for Quotation

Your Query is sent.

  •     *Required Fields

Loading



Security policy



Delivery policy



Return policy

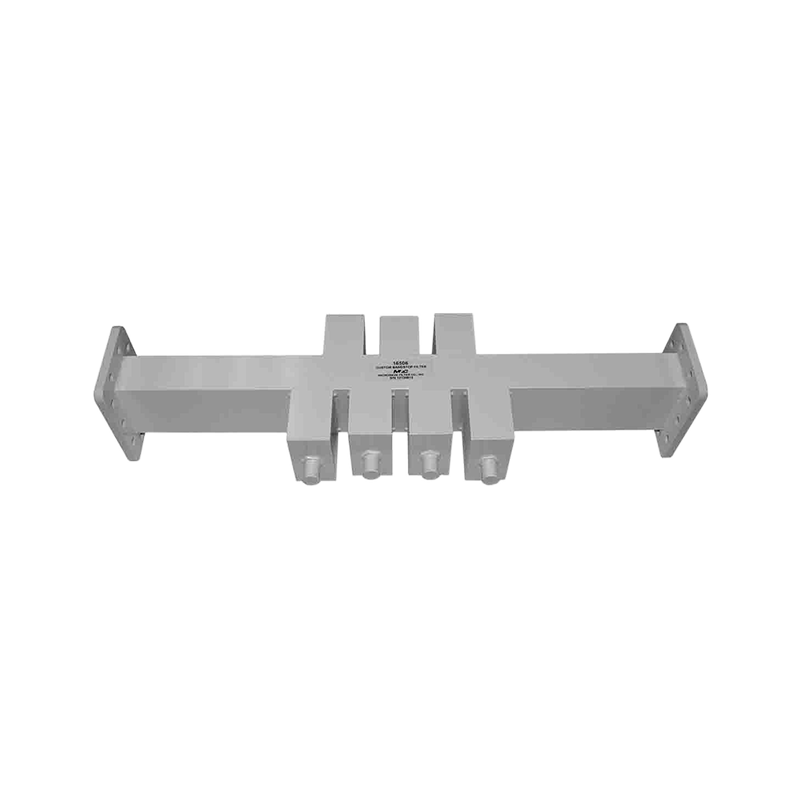

MFC 16506 Super Extended C-Band Radar Reject Filter
The 16506 is a precision-engineered, ultra-low-loss bandpass filter covering 3.4–4.2 GHz, specifically designed to suppress aircraft radionavigation interference just above the C-band. With typical insertion loss as low as 0.05 dB and 25 dB minimum rejection from 4.24 to 4.35 GHz, it’s ideal for high-performance satellite downlink systems. Housed in a durable enclosure with CPR229F flanges, this filter ensures optimal signal quality in critical SATCOM deployments.

Key Features:

Passband: 3.4–4.2 GHz

Insertion Loss: 0.05 dB typ (3.4–4.1 GHz), 0.25 dB typ (4.1–4.2 GHz)

Rejection: ≥25 dB @ 4.24–4.35 GHz

VSWR: ≤1.2:1

Flanges: CPR229F

Dimensions: 18" × 3.8" × 5.4"

Application: Super Extended C-band satellite interference protection

16506
Type
Bandpass Filters
Passband
3.4–4.2 GHz
Stopband Rejection
25-40 dB
