MFC 16507

16507 Super-Extended C-Band Filter | 3.4–4.2 GHz | Low-Loss, High Rejection

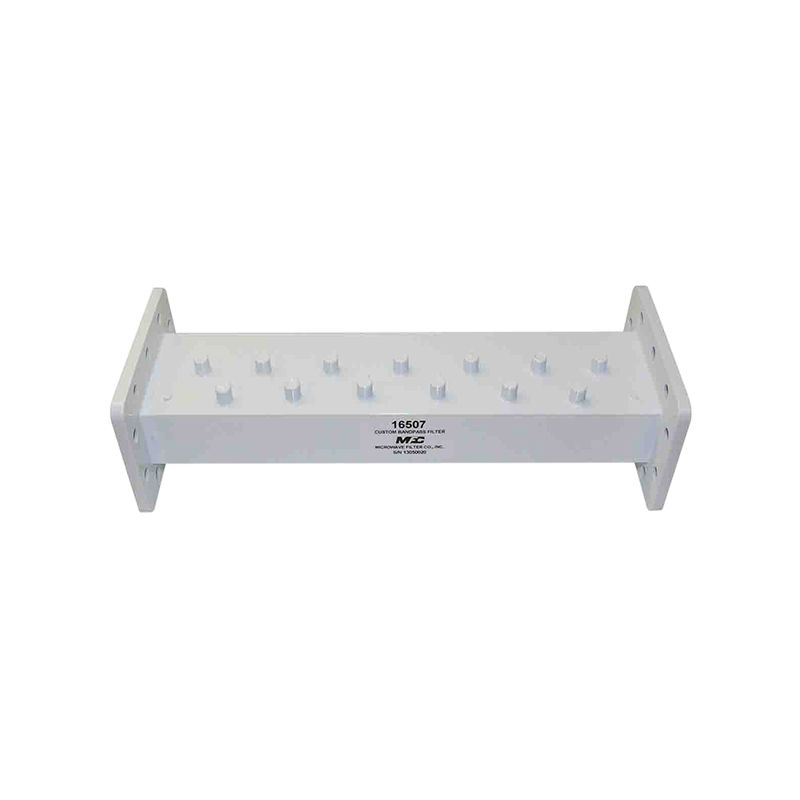

The 16507 is a super-extended C-band receive filter designed to suppress strong out-of-band interference below 3 GHz. With a low insertion loss of ≤0.1 dB and a maximum VSWR of 1.2:1, it delivers excellent in-band signal integrity for SATCOM ground stations. The compact, gloss-white enclosure features CPR229F flanges for seamless integration in professional systems.

Key Features:

Passband: 3.4–4.2 GHz
Insertion Loss: ≤0.1 dB
VSWR: ≤1.2:1
Stopband Rejection: ≥50 dB @ 3.0 GHz
Flanges: CPR229F
Compact housing: 11.0" × 3.87" × 2.75" (279 × 98 × 70 mm)
Weight: 2.9 lbs (1.3 kg)
Gloss white lacquer finish
Application: Out-of-band interference suppression for SATCOM C-band systems
