MFC 16600

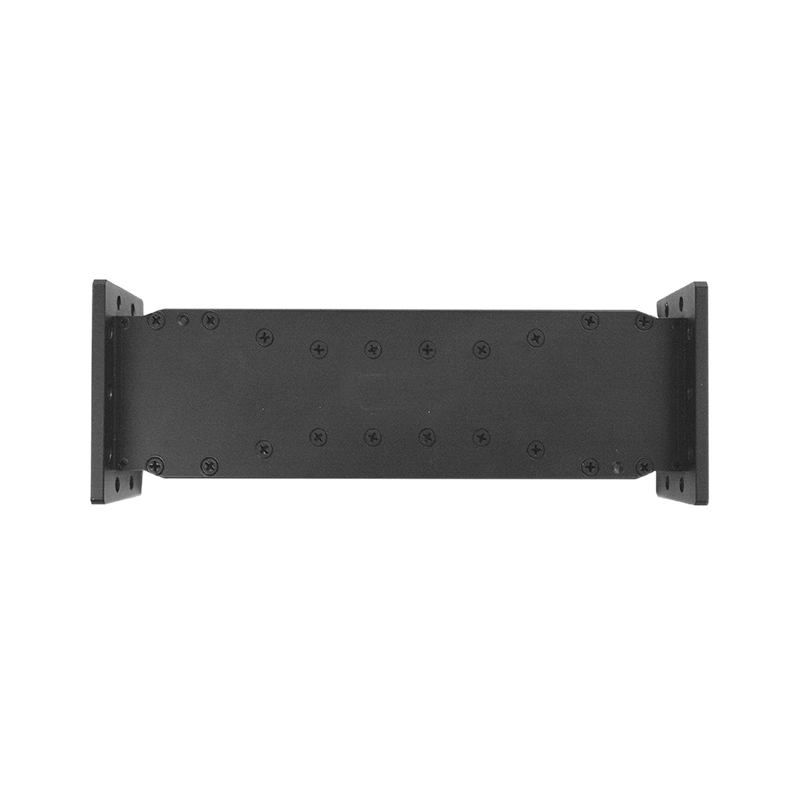

Model 16600 C-Band Transmit Reject Filter | 3.4–4.2 GHz Passband, 80 dB Rejection

The Model 16600 Super Extended C-Band Transmit Reject Filter is engineered for critical SATCOM receive systems requiring protection from uplink and feeder downlink interference. It offers a wide 3.4–4.2 GHz passband and delivers extreme stopband rejection—≥80 dB from 5.825 to 7.250 GHz and ≥70 dB up to 8.400 GHz. Ideal for installations near powerful uplink transmitters or MSS feeder links, this filter maintains low insertion loss and excellent VSWR performance for optimal signal quality.

Key Features:

Passband: 3.4 – 4.2 GHz
Rejection:
• ≥80 dB from 5.825 – 7.250 GHz
• ≥70 dB from 7.250 – 8.400 GHz
Insertion Loss: 0.5 dB typ.
VSWR: ≤1.5:1 typ.
Group Delay Variation: ≤8 ns
Flanges: CPR-229G (input), CPR-229F (output)
Application: SATCOM downlink protection from C-band uplink and MSS feeder link interference
