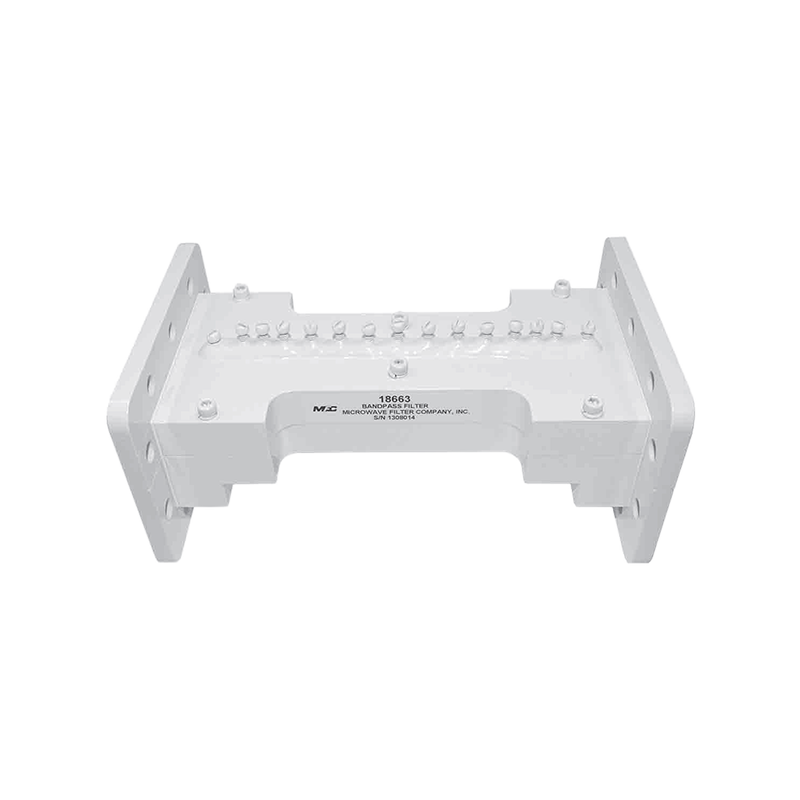

MFC 18663 | INSAT C-Band Receive Filter with Multi-Band Rejection
The Model 18663 is a high-performance C-band receive filter engineered for INSAT and extended C-band systems. It delivers ultra-low insertion loss across the 4.5–4.8 GHz passband while offering outstanding rejection of interference from WiMAX, X-band, radar, and maritime radionavigation. Ideal for installations with dense transmit paths, this bolt-on filter ensures minimal signal degradation and no need for external power.
Key Features:
Passband: 4.5–4.8 GHz
Rejection:
• ≥80 dB from 1–3.9 GHz and 5.85–12 GHz
• ≥70 dB from 5.4–5.85 GHz
• ≥20 dB from 3.9–4.3 GHz
Insertion Loss: ≤0.2 dB max
VSWR: ≤1.22:1
Flanges: CPR229G
Enclosure: Gloss white lacquer, 6.36" x 3.88" x 2.75"
Application: INSAT, radar, WiMAX, and X-band interference rejection
MFC 18663
- Type
- Bandpass Filters
- Passband
- 4.5–4.8 GHz
- Stopband Rejection
- 80+ dB
