MFC 19511

Model 19511 C-Band Receive Filter | Ultra-Wideband Interference Rejection

The MFC Model 19511 is a high-rejection C-band receive filter engineered to protect satellite downlinks in the 3.7–4.2 GHz range. This multi-purpose filter blocks a wide range of out-of-band signals, including C-band uplink (5.825–6.725 GHz), WiMAX, maritime navigation, and even Ku-band interference—making it ideal for high-density receive sites or spectrum-sensitive SATCOM installations. With ultra-low insertion loss and broad stopband coverage, the 19511 ensures clean signal reception in complex RF environments.

Key Features:

Passband: 3700–4200 MHz

Insertion Loss: ~0.3 dB at band center

VSWR: 1.22:1 typ

Rejection:
   80 dB typ. from DC to 3.5 GHz
   55 dB typ. @ 3.62 GHz
   60 dB min. from 4.3–4.9 GHz
   90 dB min. from 4.9–14.0 GHz

Blocks WiMAX, maritime, radar, X-band, and Ku-band interference

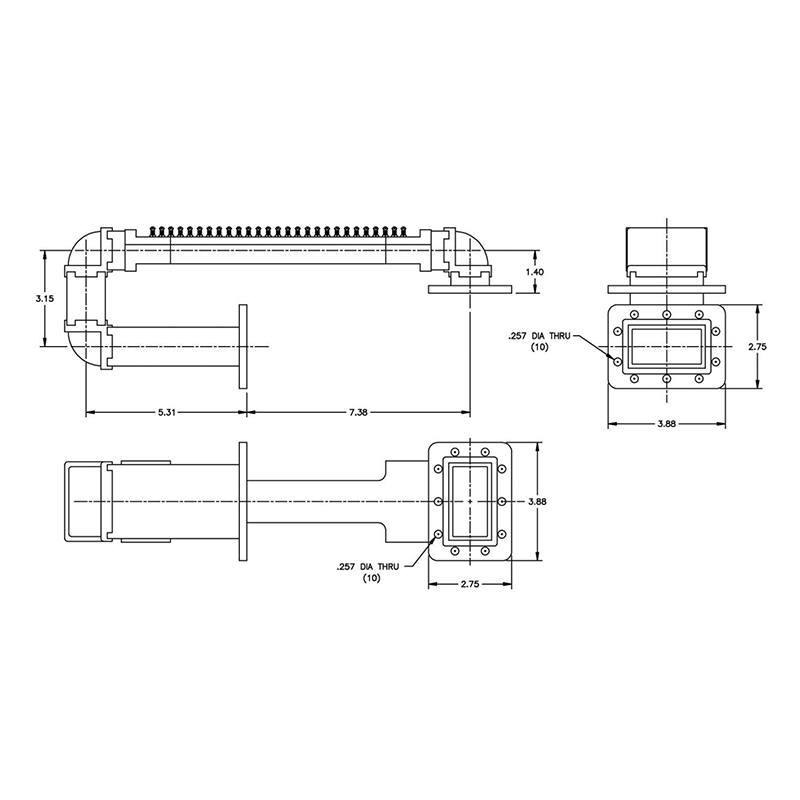

Flanges: CPR229G

Application: Multi-band rejection for C-band satellite receive systems
