Norsat BPF-100166 L-Band Bandpass Filter

Norsat BPF-100166 L-Band Bandpass Filter

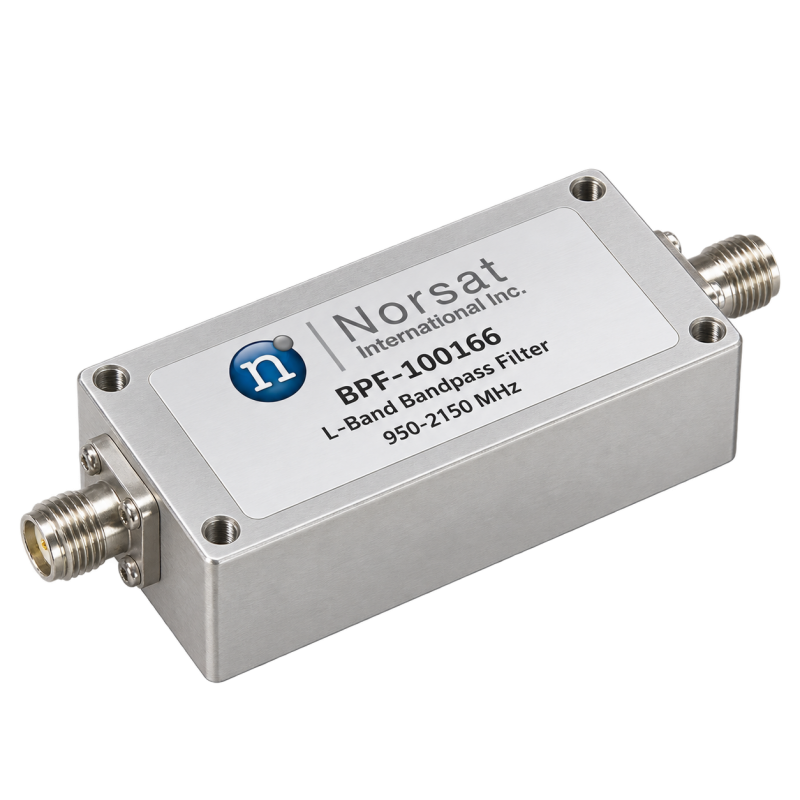

The Norsat BPF-100166 is a compact 50-ohm L-band bandpass filter designed to pass satellite signals from 950 to 2150 MHz while suppressing unwanted frequencies outside the operating band. It provides at least 30 dB attenuation below 850 MHz and from 2250 to 3500 MHz, making it suitable for indoor professional satellite and RF systems.

Key Specifications:

• Frequency Range: 950–2150 MHz

• Center Frequency: 1550 MHz

• Bandwidth: 1200 MHz

• Impedance: 50 ohms

• Out-of-Band Attenuation:

• 30 dB minimum from DC–850 MHz

• 30 dB minimum from 2250–3500 MHz

• In-Band Insertion Loss:

• 1.5 dB maximum at 1550 MHz

• 3.0 dB maximum from 950–2150 MHz

• Return Loss: 12 dB typ.

• Passband Ripple: 3.0 dB maximum

• RF Input Connector: SMA female

• RF Output Connector: SMA female

• Power Requirement: +18 VDC at 500 mA

• Power Consumption: 2 W CW

• Operating Temperature: -55°C to +85°C

• Storage Temperature: -60°C to +95°C

• Application: Indoor

• Dimensions: 70 × 26 × 16 mm

• Weight: 0.4 kg

• Country of Origin: China

• ECCN: EAR99

• Warranty: One year

Its wide L-band passband, strong out-of-band rejection and compact construction make the BPF-100166 ideal for satellite communication systems requiring effective RF filtering and interference suppression.
