Quintech LS082150A2FVA000 950-2150 MHz Dual 8-Way Active Splitter

Quintech LS082150A2FVA000 950-2150 MHz Dual 8-Way Active Splitter

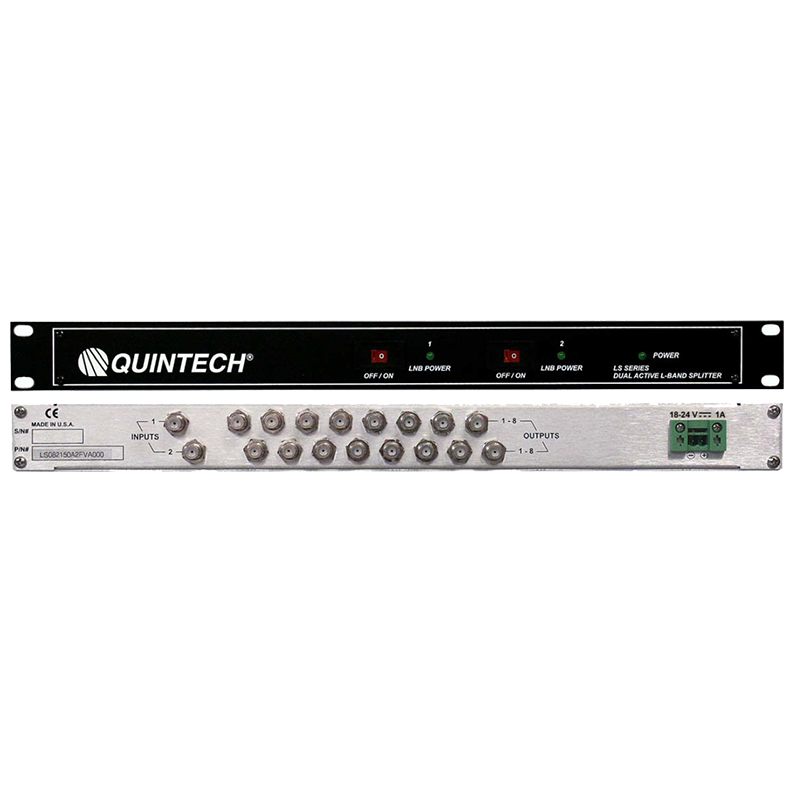

The Quintech LS082150A2FVA000 (LS8 2150A/2) is a commercial-quality dual 8-way active L-band splitter operating from 950 to 2150 MHz. It contains two independent 1×8 splitter channels, allowing two RF inputs to be distributed across a total of 16 RF outputs.

The active zero-loss design eliminates the need for external distribution amplifiers, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. Each input supports switchable 18 VDC LNB power insertion controlled by a front-panel switch, with LEDs indicating LNB power status. All RF outputs are DC blocked.

All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: Dual 8-Way Active L-Band Splitter
Configuration: Two Independent 1×8 Splitters
Manufacturer: Quintech Electronics
Product Series: LS8 2150A/2
Part Number: LS082150A2FVA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: 0 dBm
OIP3: 10 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 16 dB
Noise Figure: 7 dB
RF Connectors: Type F, 75 ohms
Power Requirements: 18-24 VDC at 1 A
Power Connection: 2-pin quick-connect barrier strip
LNB Power: 18 VDC, 800 mA maximum
LNB Power Control: Front-panel on/off switches
RF Outputs: DC blocked
Power Consumption: 5 W at 18 VDC plus connected LNB load
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 3 lb.
Gross Boxed Weight: 5.6 lb.
Certification: CE
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
