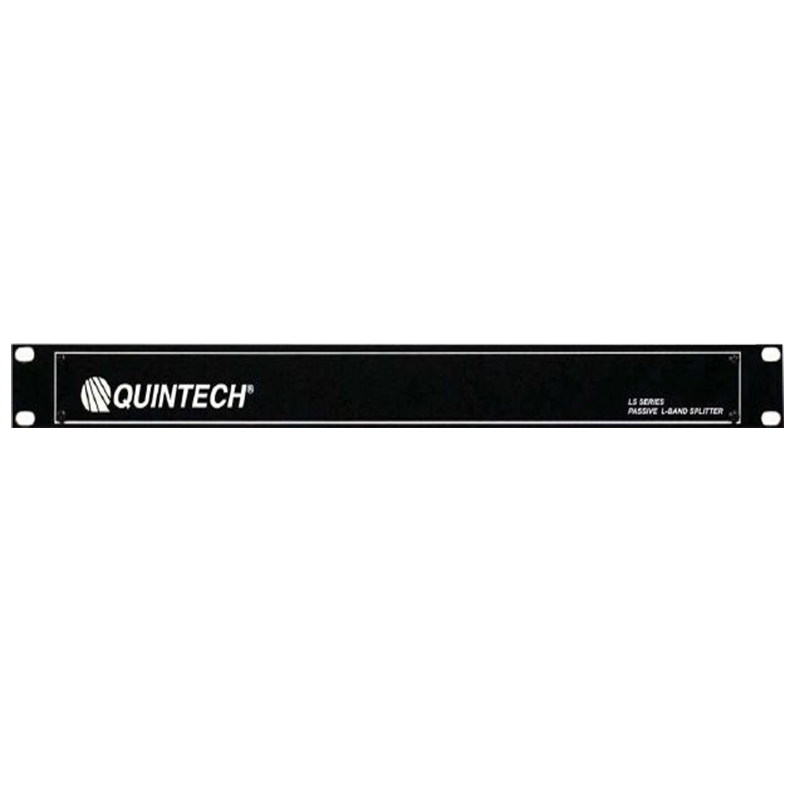

The Quintech LS042150P2FNA000 (LS4 2150P/2) is a commercial-quality dual 4-way passive L-band splitter/combiner operating from 950 to 2150 MHz. It contains two independent 1×4 channels for distributing two RF input signals across a total of eight RF outputs.

Built with Quintech proprietary microstrip and surface-mount technology, the LS042150P2FNA000 provides repeatable performance across its entire frequency range and all input/output ports. Each channel includes a rear-panel terminal for external LNB power insertion, while output port 1 provides a second power-passing path. Both DC paths are diode protected, providing redundant LNB power when both paths are energized.

All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: Dual 4-Way Passive L-Band Splitter/Combiner
Configuration: Two Independent 1×4 Channels
Manufacturer: Quintech Electronics
Product Series: LS4 2150P/2
Part Number: LS042150P2FNA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
Insertion Loss: 7.5 ± 1 dB
Frequency Response: ±1 dB
Isolation: 19 dB
Input Return Loss: 13 dB
Output Return Loss: 14 dB
RF Connectors: Type F, 75 ohms
LNB Power Input: Rear-panel terminal
DC Power Passing: Output port 1
DC Path Protection: Diode protected
Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing
Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
