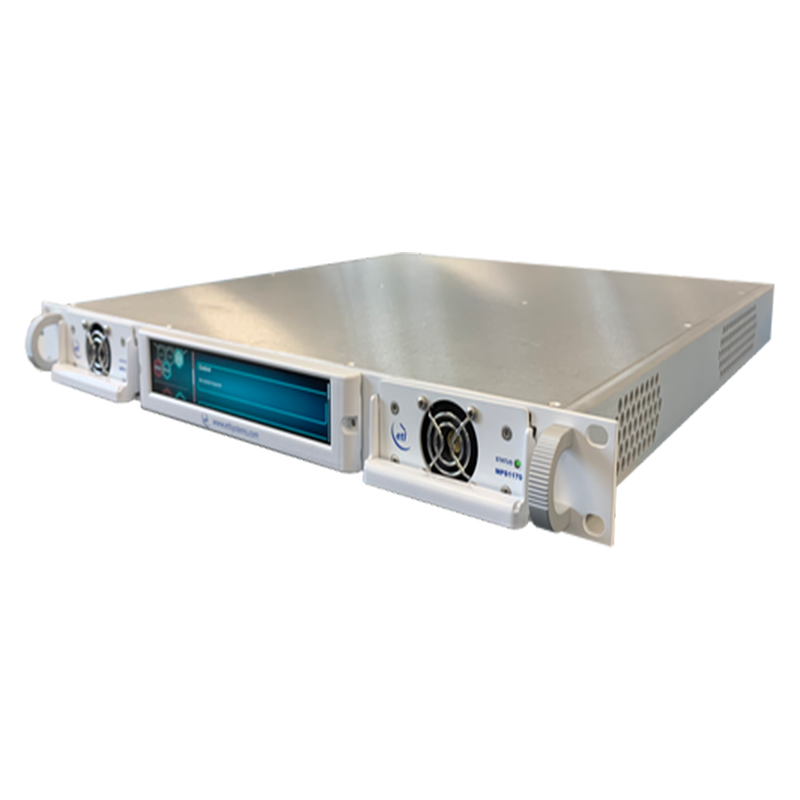

ETL Systems Hawk HWK-G1S-10 Dual 8×8 Extended L-Band Matrix

ETL Systems Hawk HWK-G1S-10 Dual 8×8 Extended L-Band Matrix

The ETL Systems Hawk HWK-G1S-10 provides configurable RF signal routing for satellite uplink and downlink systems in a compact 1U chassis. It supports two field-replaceable 8×8 matrix cards, which can be configured for distribution, combining, or both—making it well suited to gateways with multiple modems and antennas.

Frequency Range: 500–2450 MHz
Matrix Capacity: Up to two 8×8 cards
Routing Options: Distribution, combining, or mixed configuration
RF Ports: 50 Ω SMA, DC blocked
Switching Time: Less than 50 ms
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS and SNMPv3
Power Supplies: Dual redundant, hot-swappable
Form Factor: 1U, 19-inch rack mount

Key Features

• Configurable uplink and downlink routing in one chassis

• Field-replaceable matrix cards, CPU, and touchscreen

• Extended L-band coverage for Ka-band and HTS applications
