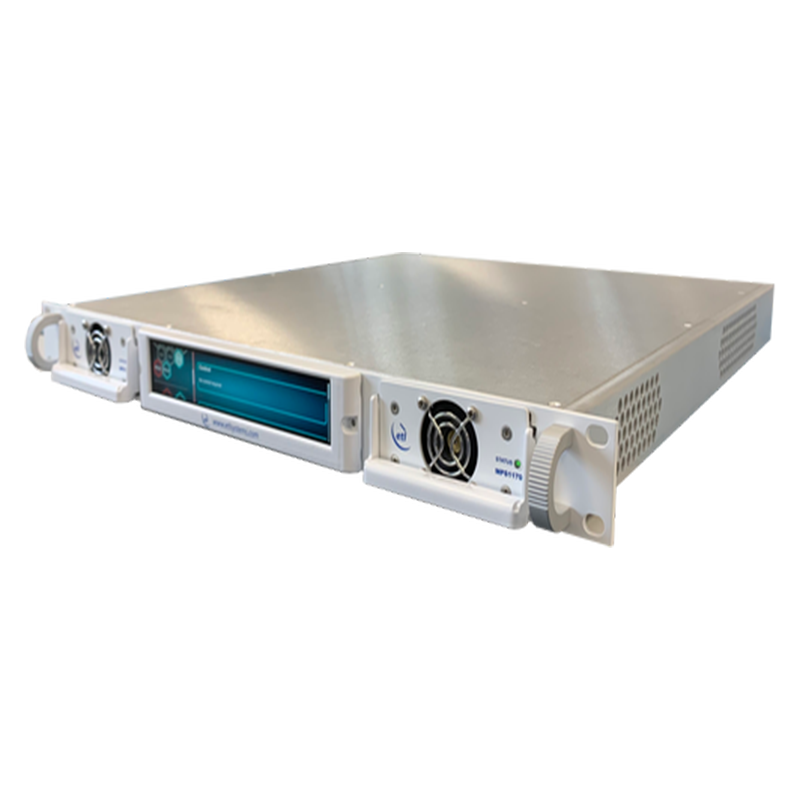

ETL Systems Hawk HWK-G1S-11 Dual 8×8 Extended L-Band Matrix with Gain Control

ETL Systems Hawk HWK-G1S-11 Dual 8×8 Extended L-Band Matrix with Gain Control

The ETL Systems Hawk HWK-G1S-11 provides configurable RF signal routing with gain control for satellite uplink and downlink systems in a compact 1U chassis. It supports up to two field-replaceable 8×8 matrix cards for distribution, combining, or a mixed configuration, while adjustable gain helps balance signal levels across connected equipment.

Frequency Range: 500–2450 MHz
Matrix Capacity: Up to two 8×8 cards
Routing Options: Distribution, combining, or mixed configuration
Gain Control: 0 to 5 dB in 0.5 dB steps
RF Ports: 50 Ω SMA, DC blocked
Switching Time: Less than 50 ms
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS and SNMPv3
Power Supplies: Dual redundant, hot-swappable
Form Factor: 1U, 19-inch rack mount

Key Features

• Adjustable gain to balance input and output signal levels

• Configurable uplink and downlink routing in one chassis

• Field-replaceable matrix cards, CPU, and touchscreen

• Extended L-band coverage for Ka-band and HTS applications
