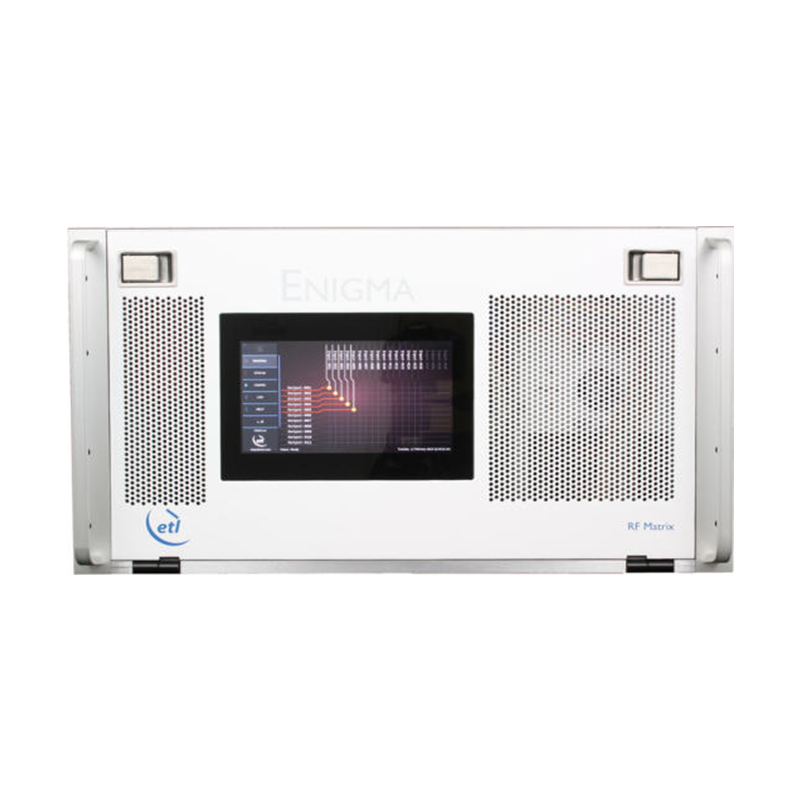

The ETL Systems Enigma NGMC-102 is a fully populated, non-blocking 32×32 RF switch matrix for satellite uplink combining. It can route multiple inputs to each output, while gain control at each output helps balance signal levels.

Frequency Range: 850–2450 MHz
Matrix Capacity: 32 inputs × 32 outputs, fully populated
Routing: Combining, non-blocking
Gain Control: −5 to +5 dB per output in 0.25 dB steps
RF Connector Options: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Switching Time: Less than 50 ms
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and web interface
Resilience: Dual redundant, hot-swappable power supplies and CPUs; hot-swappable input and output cards
Form Factor: 6U, 19-inch rack mount

Key Features

• Routes multiple inputs to each of 32 outputs

• Individual output gain adjustment for signal balancing

• Continuous monitoring of amplifiers, CPUs, and power supplies

• Individual RF cards can be replaced with limited effect on other ports
