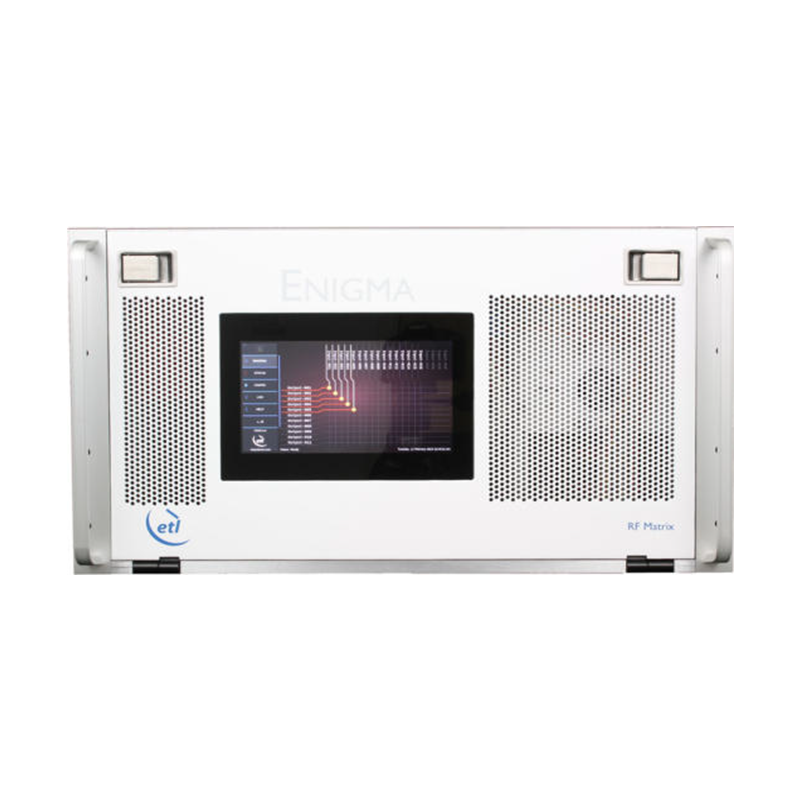

The ETL Systems Enigma Ensign NSN-102 is a fully populated 32×32 RF matrix that can split and combine extended L-band signals at the same time. Independent gain adjustment at the inputs and outputs helps balance signal levels across satellite gateway and teleport connections.

Frequency Range: 850–2450 MHz
Matrix Capacity: 32 inputs × 32 outputs, fully populated
Routing: Fan-in/fan-out; simultaneous splitting and combining
Gain Control: 0 to +10 dB total in 0.25 dB steps; up to +5 dB independently at each input and output
RF Connector Options: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Switching Time: Less than 50 ms
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and web interface
Resilience: Dual redundant, hot-swappable power supplies and CPUs; hot-swappable input and output cards
Form Factor: 6U, 19-inch rack mount

Key Features

• Splits and combines feeds simultaneously in one matrix

• Independent input and output gain adjustment

• Continuous monitoring of amplifiers, CPUs, and power supplies

• Individual RF cards can be replaced with limited effect on other ports
