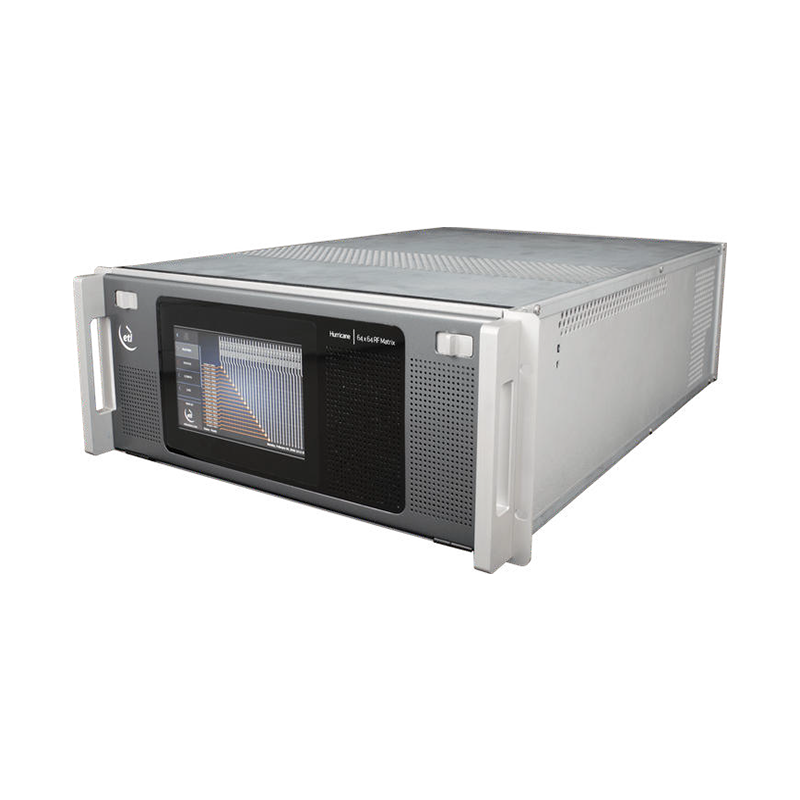

ETL Systems Hurricane HUR-10 64×64 Extended L-Band Distribution Matrix

ETL Systems Hurricane HUR-10 64×64 Extended L-Band Distribution Matrix

The ETL Systems Hurricane HUR-10 is a configurable, non-blocking RF matrix for satellite downlink distribution. It expands from 8×8 to 64×64 in blocks of eight and accepts a mix of input and output modules to suit different antenna feeds and signal levels.

Frequency Range: 850–2450 MHz
Matrix Capacity: 8×8 to 64×64, expandable in blocks of eight
Routing: Distributive, non-blocking; any input can feed multiple outputs
Module Options: Passive RF, variable gain, optical fiber input, and LNB powering
RF Connector Options: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Switching Time: 50 ms maximum
Control & Monitoring: Front-panel touchscreen; Ethernet web interface, HTTPS, and SNMPv3
Resilience: Dual redundant, hot-swappable power supplies and CPUs; hot-swappable RF cards, I/O modules, and fan trays
Form Factor: 4U, 19-inch rack mount

Key Features

• Scales to 64 inputs and 64 outputs in a 4U chassis

• Mixes I/O module types to meet individual feed requirements

• Offers variable gain, slope control, RF power monitoring, and LNB powering with applicable modules

• Powers only active signal routes to reduce power consumption

• Supports automatic rerouting under certain fault conditions
