ETL Systems Vortex VTX-100 64×64 Extended L-Band Distribution Matrix

ETL Systems Vortex VTX-100 64×64 Extended L-Band Distribution Matrix

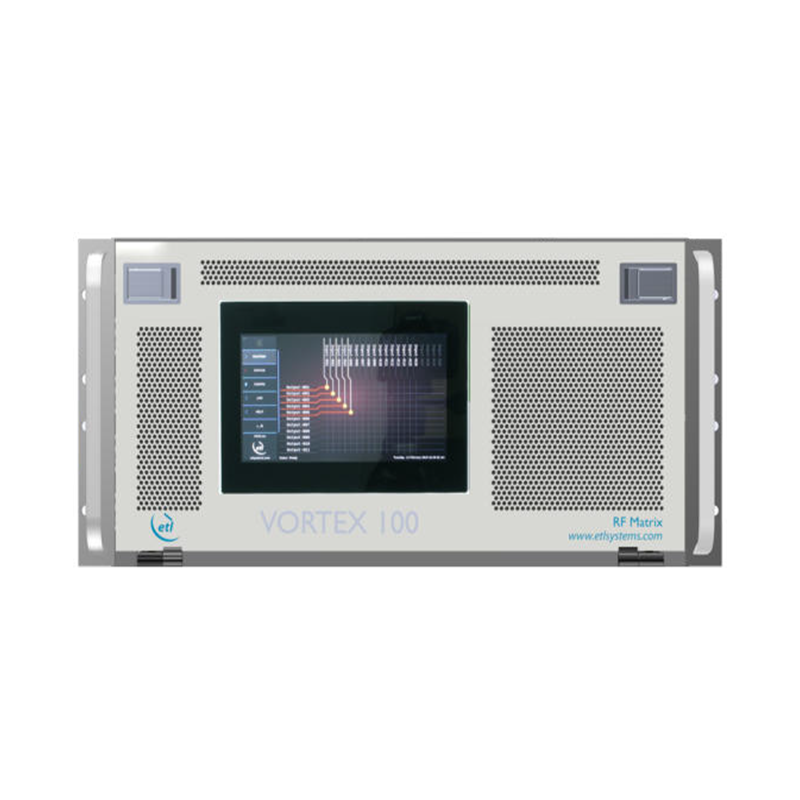

The ETL Systems Vortex VTX-100 routes extended L-band signals across satellite ground systems. This non-blocking distributive matrix connects any of up to 64 inputs to any number of outputs, with capacity expanded in blocks of 16. Its 5U chassis includes redundant, hot-swappable CPUs and power supplies for reliable operation.

Frequency Range: 850–2450 MHz
Matrix Capacity: Up to 64 inputs × 64 outputs
Routing: Non-blocking distribution
Switching Time: Less than 150 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS and SNMPv3
Redundancy: Dual hot-swappable CPUs and power supplies
Form Factor: 5U, 19-inch rack mount

Key Features

• Routes one input to multiple outputs simultaneously

• Expands in blocks of 16 inputs and outputs

• Hot-swappable RF cards and fans

• Built-in diagnostics and web interface

Connector type depends on the configuration ordered. LNB power is not provided.
