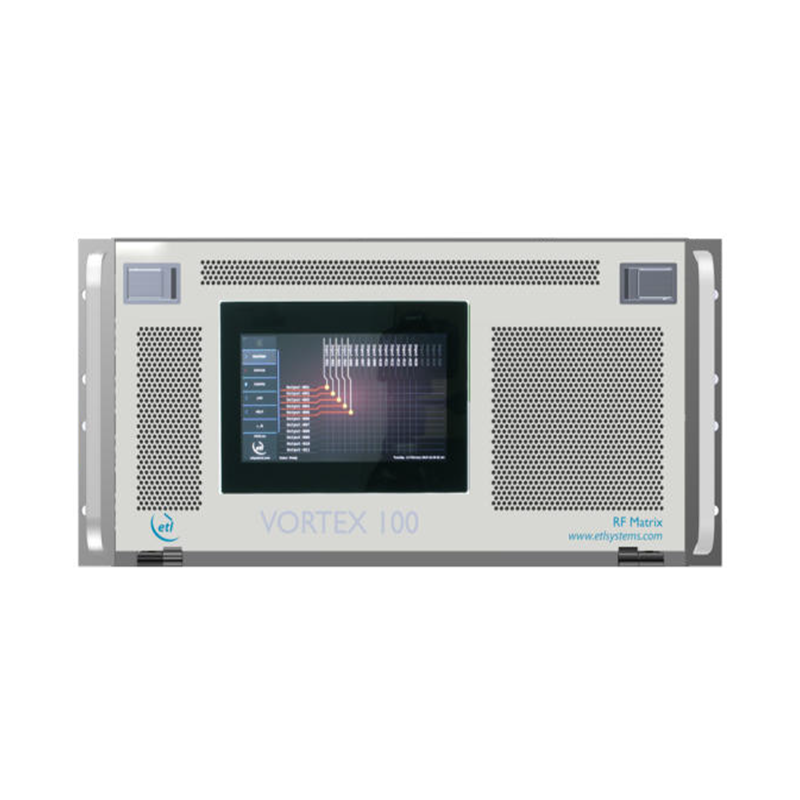

The ETL Systems Vortex VTXC-100 combines extended L-band signals in satellite ground systems. This non-blocking matrix routes multiple inputs to each output, supports up to 64 inputs and 64 outputs, and expands in blocks of 16. Its compact 5U chassis provides redundant, hot-swappable CPUs and power supplies.

Frequency Range: 850–2450 MHz
Matrix Capacity: Up to 64 inputs × 64 outputs
Routing: Non-blocking combining; multiple inputs per output
Switching Time: Less than 150 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Gain: 0 ±2 dB typ. mean across band
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS and SNMPv3
Redundancy: Dual hot-swappable CPUs and power supplies
Form Factor: 5U, 19-inch rack mount

Key Features

• Combines multiple L-band inputs at each output

• Expands in blocks of 16 inputs and outputs

• Hot-swappable RF cards and fans

• Built-in diagnostics and web interface

Connector type depends on the configuration ordered. LNB power is not provided.
