ETL Systems Ensign NSN-103 32×32 500–3150 MHz Fan-In Fan-Out Matrix

ETL Systems Ensign NSN-103 32×32 500–3150 MHz Fan-In Fan-Out Matrix

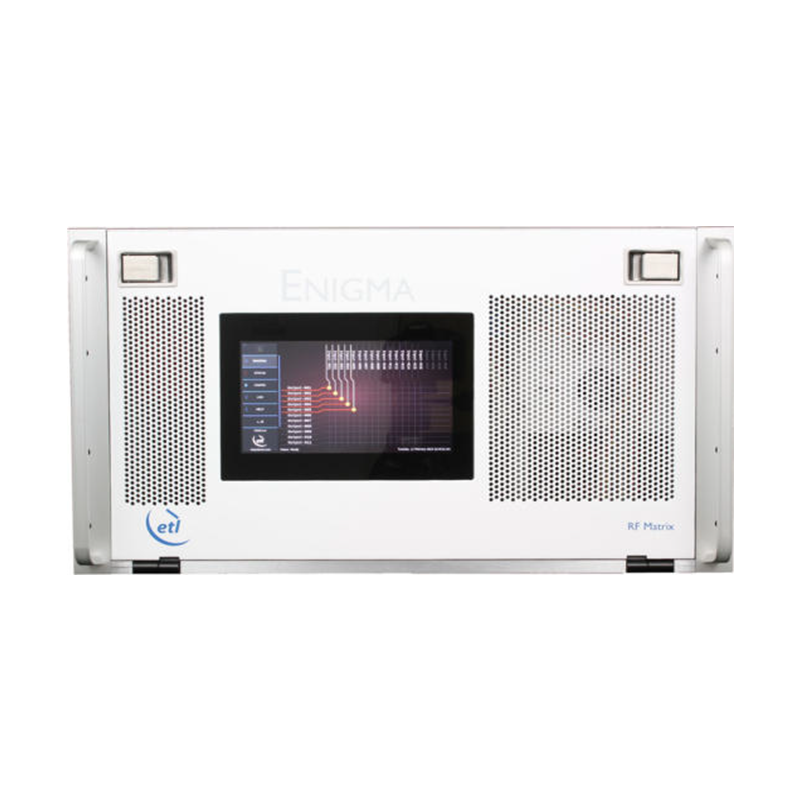

The ETL Systems Ensign NSN-103 is a 32×32 RF matrix that splits and combines satellite signals at the same time. Its fan-in fan-out routing covers 500–3150 MHz for extended L-band and HTS applications, with gain independently adjustable at the inputs and outputs. The fully populated matrix fits in a 6U rackmount chassis with redundant, hot-swappable CPUs and power supplies.

Frequency Range: 500–3150 MHz
Matrix Capacity: 32 inputs × 32 outputs, fully populated
Routing: Fan-in fan-out; simultaneous signal splitting and combining
Gain Control: 0 to +10 dB total in 0.25 dB steps; up to +5 dB independently at each input and output
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and web interface
Redundancy: Dual hot-swappable CPUs and power supplies
Form Factor: 6U, 19-inch rack mount

Key Features

• Splits and combines feeds simultaneously in one matrix

• Covers 500–3150 MHz for HTS applications

• Uses hot-swappable input and output RF cards

• Provides built-in diagnostics and dry-contact alarms

Connector type depends on the configuration ordered.
