ETL Systems Victor VTR-100-0824 8×24 Extended L-Band Distribution Matrix

ETL Systems Victor VTR-100-0824 8×24 Extended L-Band Distribution Matrix

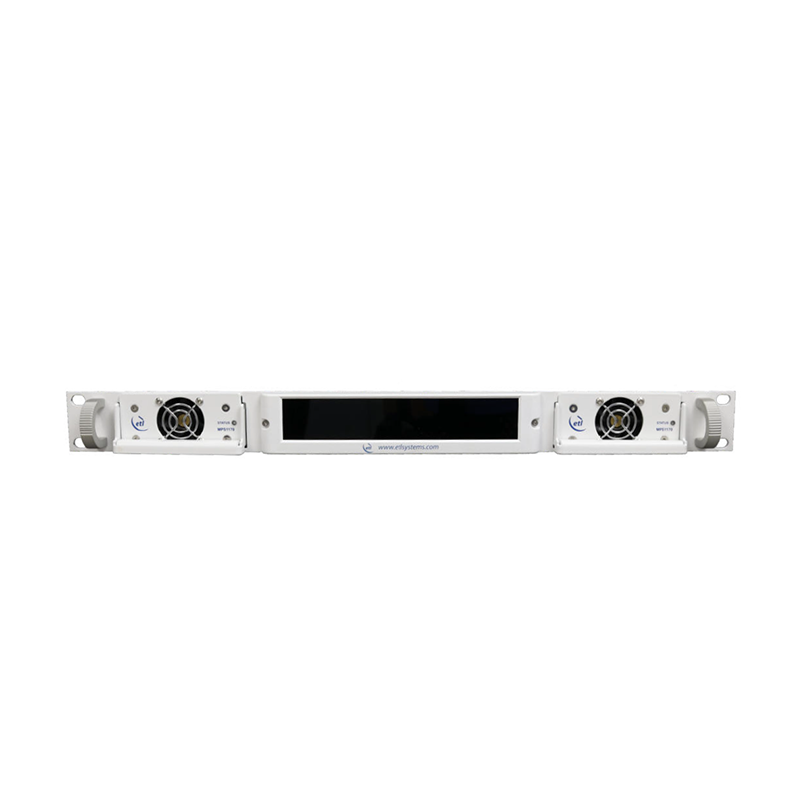

The ETL Systems Victor VTR-100-0824 is a compact, non-blocking 8×24 RF distribution matrix for satellite ground systems. It routes any input to multiple outputs across the 850–2450 MHz extended L-band range. Gain is adjustable at each input, while dual redundant power supplies support operation in a 1U rackmount chassis.

Frequency Range: 850–2450 MHz
Matrix Capacity: Up to 8 inputs × 24 outputs
Routing: Non-blocking distribution; any input to multiple outputs
Gain Control: −5 to +5 dB at each input, in 1 dB steps
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Noise Figure: 15 dB typ. at 0 dB gain, with one input routed to one output
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and built-in web server
Power Supplies: Dual redundant
Form Factor: 1U, 19-inch rack mount

Key Features

• Distributes any input signal to multiple outputs

• Provides per-input gain adjustment to balance signal levels

• Offers local and remote control and monitoring

• Uses dual redundant, hot-swappable power supplies

Port count and connector type depend on the configuration ordered.
