ETL Systems Victor VTR-101-1616 16×16 Extended L-Band Distribution Matrix

ETL Systems Victor VTR-101-1616 16×16 Extended L-Band Distribution Matrix

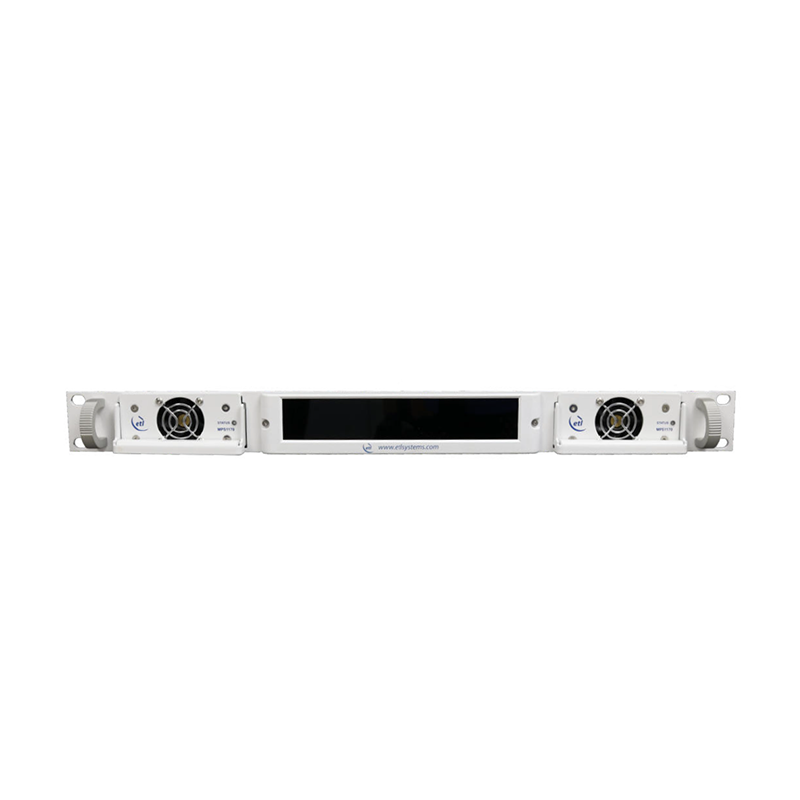

The ETL Systems Victor VTR-101-1616 is a compact, non-blocking 16×16 RF distribution matrix for satellite ground systems. It routes any input to multiple outputs across the 850–2450 MHz extended L-band range, with gain adjustable at each input. The 1U rackmount chassis includes dual redundant power supplies.

Frequency Range: 850–2450 MHz
Matrix Capacity: Up to 16 inputs × 16 outputs
Routing: Non-blocking distribution; any input to multiple outputs
Gain Control: 0 to +5 dB at each input, in 0.25 dB steps
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Noise Figure: 14 dB typ. across the full band at unity gain, with one input routed to one output
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and built-in web server
Power Supplies: Dual redundant
Form Factor: 1U, 19-inch rack mount

Key Features

• Distributes any input signal to multiple outputs

• Provides per-input gain adjustment to balance signal levels

• Offers local and remote control and monitoring

• Uses dual redundant, hot-swappable power supplies

Port count and connector type depend on the configuration ordered.
