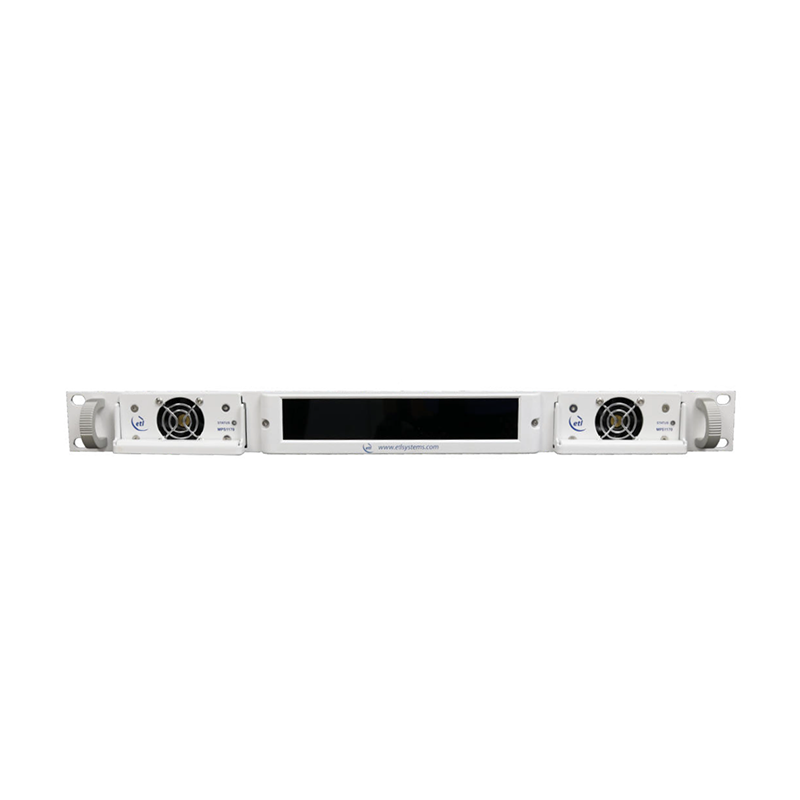

ETL Systems Victor VTR-171-XXXX-1616 16×16 IF/L-Band Distribution Matrix

ETL Systems Victor VTR-171-XXXX-1616 16×16 IF/L-Band Distribution Matrix

The ETL Systems Victor VTR-171-XXXX-1616 is a compact, non-blocking 16×16 IF/L-band distribution matrix for satellite ground systems. It routes any input to multiple outputs across 50–2500 MHz and provides adjustable gain to balance signal levels. The matrix fits in a 1U rackmount chassis with dual redundant power supplies.

Frequency Range: 50–2500 MHz
Matrix Capacity: Up to 16 inputs × 16 outputs
Routing: Non-blocking distribution; any input to multiple outputs
Gain Control: −3 to +3 dB in 0.25 dB steps
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and built-in web server
Power Supplies: Dual redundant
Form Factor: 1U, 19-inch rack mount

Key Features

• Covers both IF and L-band frequencies in one matrix

• Distributes an input signal to multiple outputs

• Provides adjustable gain for signal-level balancing

• Supports local and remote control and monitoring
