ETL Systems Victor VTR-180-XXXX-1616 16×16 IF/L-Band Distribution Matrix with LNB Power

ETL Systems Victor VTR-180-XXXX-1616 16×16 IF/L-Band Distribution Matrix with LNB Power

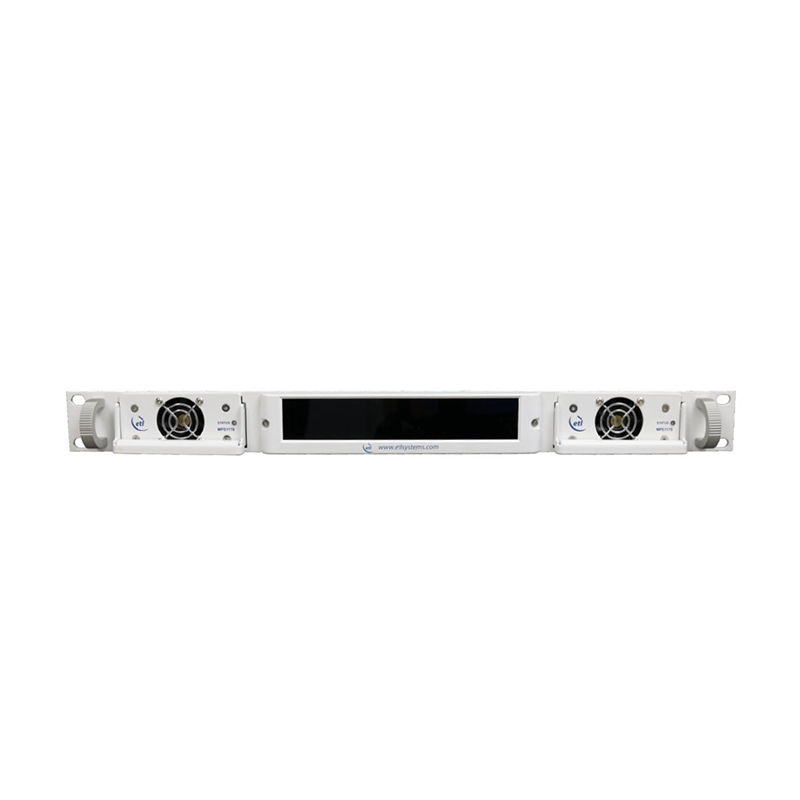

The ETL Systems Victor VTR-180-XXXX-1616 is a compact, non-blocking 16×16 IF/L-band distribution matrix for satellite ground systems. It routes any input to multiple outputs across 50–2500 MHz and adds input RF power monitoring and selectable LNB powering. Adjustable gain, dual redundant power supplies, and a 1U rackmount chassis support integration into ground station signal chains.

Frequency Range: 50–2500 MHz
Matrix Capacity: Up to 16 inputs × 16 outputs
Routing: Non-blocking distribution; any input to multiple outputs
Gain Control: −3 to +3 dB in 0.25 dB steps
RF Monitoring: −50 to +5 dBm input power range, with high and low limits
LNB Power: Selectable 0/13/18 V and 22 kHz tone on/off; 350 mA maximum per channel
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and built-in web server
Power Supplies: Dual redundant
Form Factor: 1U, 19-inch rack mount

Key Features

• Distributes any input signal to multiple outputs

• Monitors input RF power and LNB current

• Provides selectable LNB voltage and 22 kHz tone

• Supports local and remote control and monitoring
