ETL Systems Victor VTRC-100-2408 24×8 Extended L-Band Combining Matrix

ETL Systems Victor VTRC-100-2408 24×8 Extended L-Band Combining Matrix

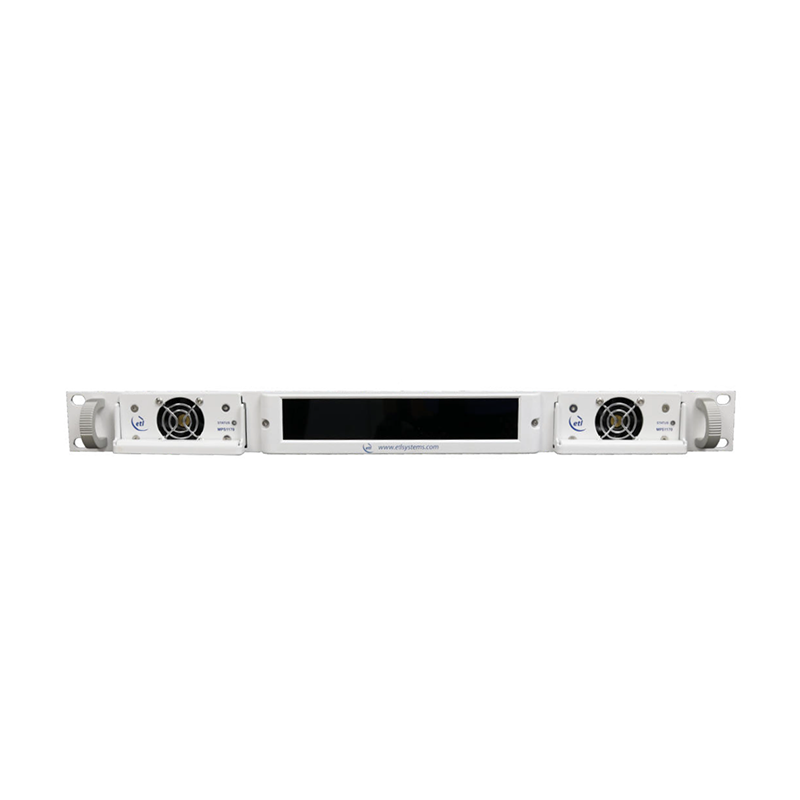

The ETL Systems Victor VTRC-100-2408 is a compact, non-blocking 24×8 RF combining matrix for satellite ground systems. It routes multiple inputs to each output across the 850–2450 MHz extended L-band range, with gain adjustable at each input. The 1U rackmount chassis includes dual redundant power supplies.

Frequency Range: 850–2450 MHz
Matrix Capacity: Up to 24 inputs × 8 outputs
Routing: Non-blocking combining; multiple inputs to each output
Gain Control: −5 to +5 dB at each input, in 1 dB steps
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Noise Figure: 23 dB typ. at 0 dB gain, with one input routed to one output
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and built-in web server
Power Supplies: Dual redundant
Form Factor: 1U, 19-inch rack mount

Key Features

• Combines multiple input signals at each output

• Provides per-input gain adjustment to balance signal levels

• Offers local and remote control and monitoring

• Uses dual redundant, hot-swappable power supplies

Port count and connector type depend on the configuration ordered.
