ETL Systems Victor VTRC-102-1616 16×16 Extended L-Band Combining Matrix

ETL Systems Victor VTRC-102-1616 16×16 Extended L-Band Combining Matrix

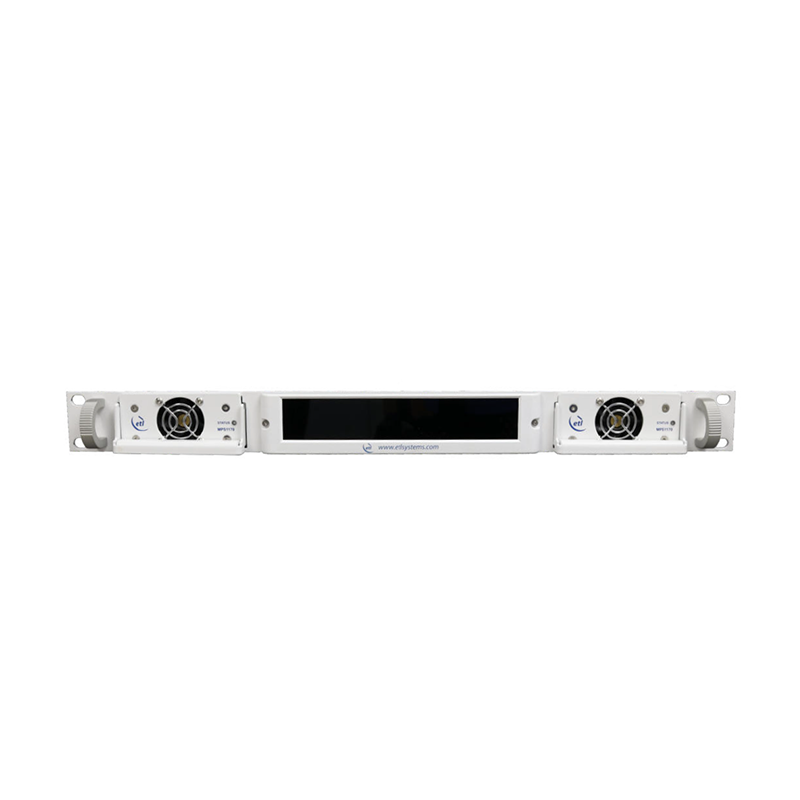

The ETL Systems Victor VTRC-102-1616 is a compact, non-blocking 16×16 RF combining matrix for satellite ground systems. It routes multiple inputs to each output across 850–2450 MHz, with adjustable gain at each input and RF power detection at each output. The 1U rackmount chassis includes dual redundant power supplies.

Frequency Range: 850–2450 MHz
Matrix Capacity: Up to 16 inputs × 16 outputs
Routing: Non-blocking combining; multiple inputs to each output
Gain Control: 0 to +5 dB at each input, in 0.25 dB steps
RF Detection: −35 to +10 dBm at each output; indicated power only
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and built-in web server
Power Supplies: Dual redundant
Form Factor: 1U, 19-inch rack mount

Key Features

• Combines multiple input signals at each output

• Reports indicative RF power at every output

• Provides per-input gain adjustment

• Uses dual redundant, hot-swappable power supplies

Port count and connector type depend on the configuration ordered. The datasheet does not specify LNB powering for this model.
