ETL Systems Enigma NGM-101 32×32 L-Band Distribution Matrix with Gain Control

ETL Systems Enigma NGM-101 32×32 L-Band Distribution Matrix with Gain Control

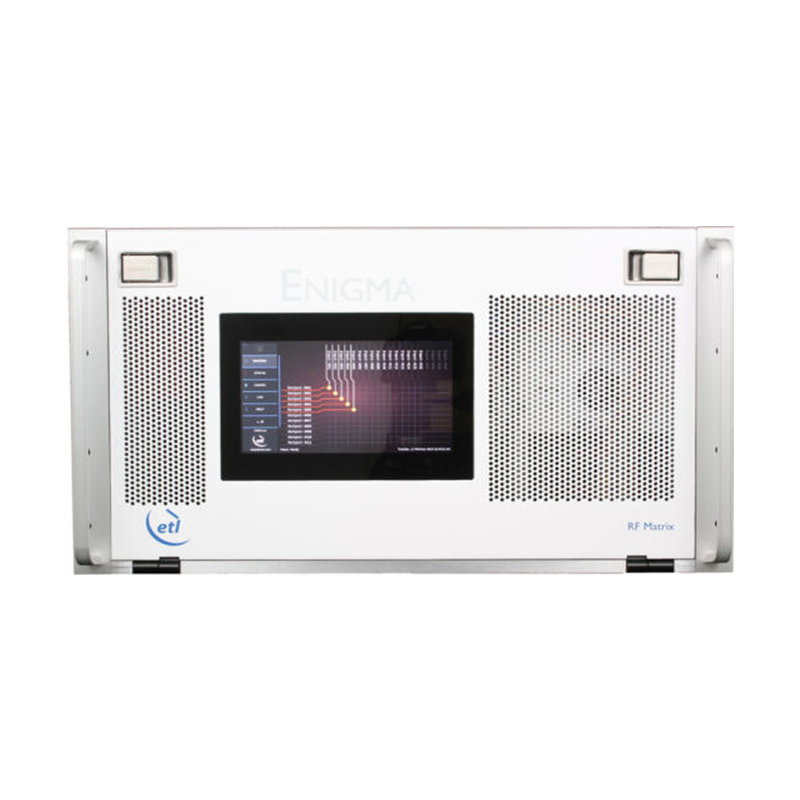

The ETL Systems Enigma NGM-101 is a non-blocking L-band distribution matrix that routes any of 32 inputs to multiple outputs. Designed for satellite ground systems, it provides gain control at each output and fits in a 6U rackmount chassis with redundant, hot-swappable CPUs and power supplies.

Frequency Range: 850–2150 MHz
Matrix Capacity: 32 inputs × 32 outputs, fully populated
Routing: Non-blocking distribution; any input to multiple outputs
Gain Control: −5 to +5 dB at each output, in 0.25 dB steps
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS and SNMPv3
Redundancy: Dual hot-swappable CPUs and power supplies
Form Factor: 6U, 19-inch rack mount

Key Features

• Adjusts gain independently at each output

• Hot-swappable RF cards affect only the associated input or output if a card fails

• Provides built-in diagnostics and a web interface

• Supports Ethernet and dry-contact alarms

Connector type depends on the configuration ordered. LNB power is not provided.
