ETL Systems Enigma NGM-103 32×32 500–3150 MHz Distribution Matrix

ETL Systems Enigma NGM-103 32×32 500–3150 MHz Distribution Matrix

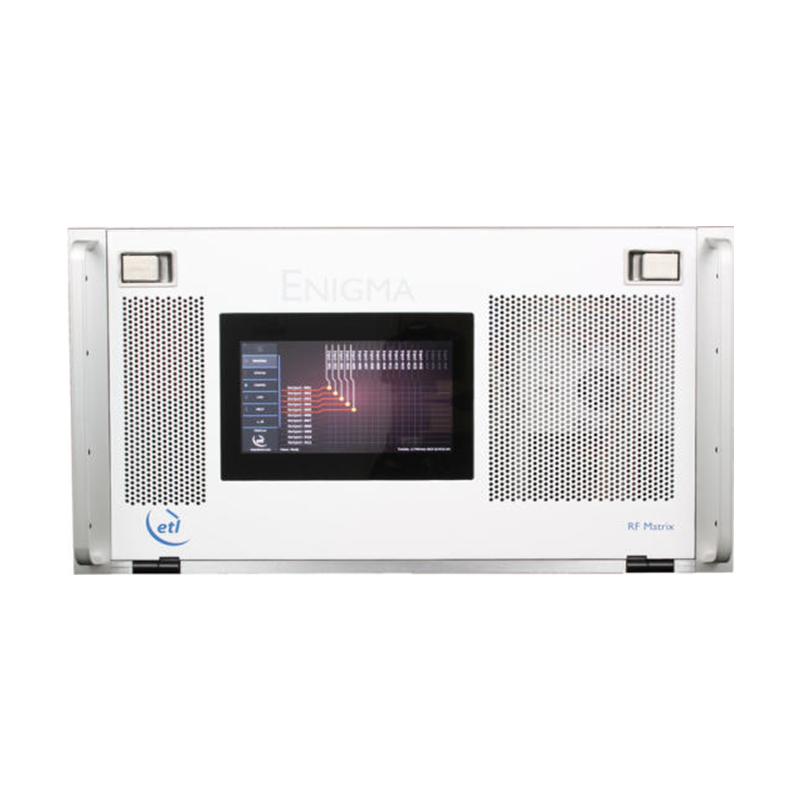

The ETL Systems Enigma NGM-103 is a non-blocking RF distribution matrix for satellite ground systems and HTS applications. It routes any of 32 inputs to multiple outputs across a 500–3150 MHz frequency range, with independent gain control at each output. The fully populated matrix fits in a 6U rackmount chassis with redundant, hot-swappable CPUs and power supplies.

Frequency Range: 500–3150 MHz
Matrix Capacity: 32 inputs × 32 outputs, fully populated
Routing: Non-blocking distribution; any input to multiple outputs
Gain Control: −5 to +5 dB at each output, in 0.25 dB steps
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and web interface
Redundancy: Dual hot-swappable CPUs and power supplies
Form Factor: 6U, 19-inch rack mount

Key Features

• Covers the extended 500–3150 MHz range for HTS applications

• Adjusts gain independently at each output

• Uses hot-swappable input and output RF cards

• Provides built-in diagnostics and dry-contact alarms

Connector type depends on the configuration ordered.
