ETL Systems Victor VTRC-171-XXXX-1616 16×16 Combining IF/L-Band Matrix

ETL Systems Victor VTRC-171-XXXX-1616 16×16 Combining IF/L-Band Matrix

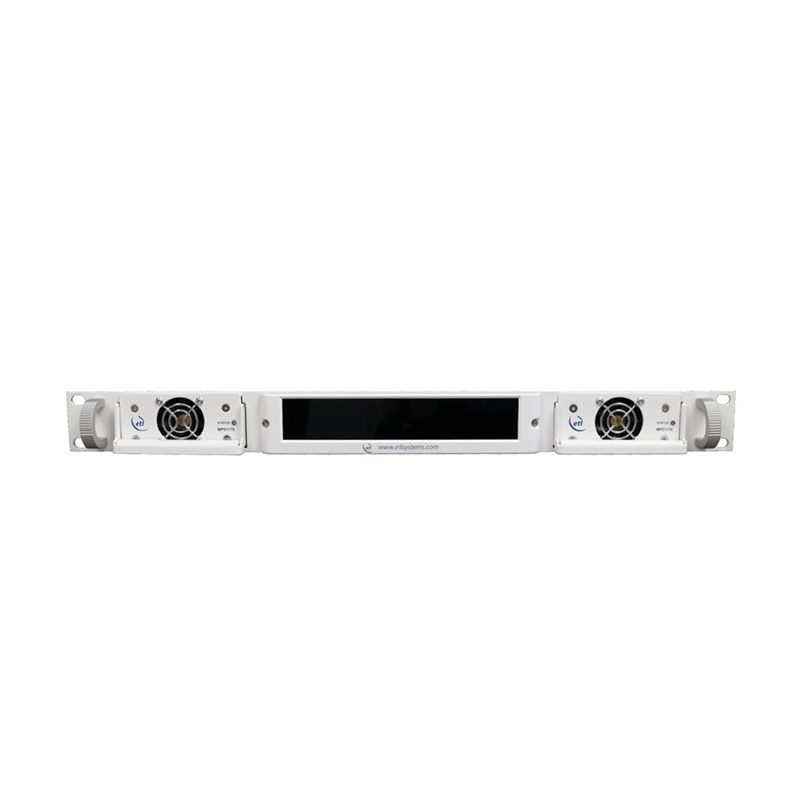

The ETL Systems Victor VTRC-171 is a 16×16 combining IF/L-band switch matrix for routing multiple satellite signals to each output. It covers 50–2500 MHz in a compact 1U chassis, with adjustable gain, local touchscreen control, remote monitoring, and dual redundant power supplies.

Frequency Range: 50–2500 MHz
Matrix Capacity: Up to 16 inputs × 16 outputs
Routing: Non-blocking combining; multiple inputs can be routed to each output
Gain Control: −3 to +3 dB in 0.25 dB steps
Switching Time: Less than 50 ms
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type, depending on configuration
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and web interface
Power Supplies: Dual redundant, with alarms
Form Factor: 1U, 19-inch rack mount

Key Features

• Combines up to 16 input signals across 16 outputs

• Extended IF/L-band coverage for satellite systems

• Adjustable gain to balance signal levels

• Local and remote control with redundant power

The supplied datasheet is a preliminary specification. Connector choice and final configuration should be confirmed before ordering.
