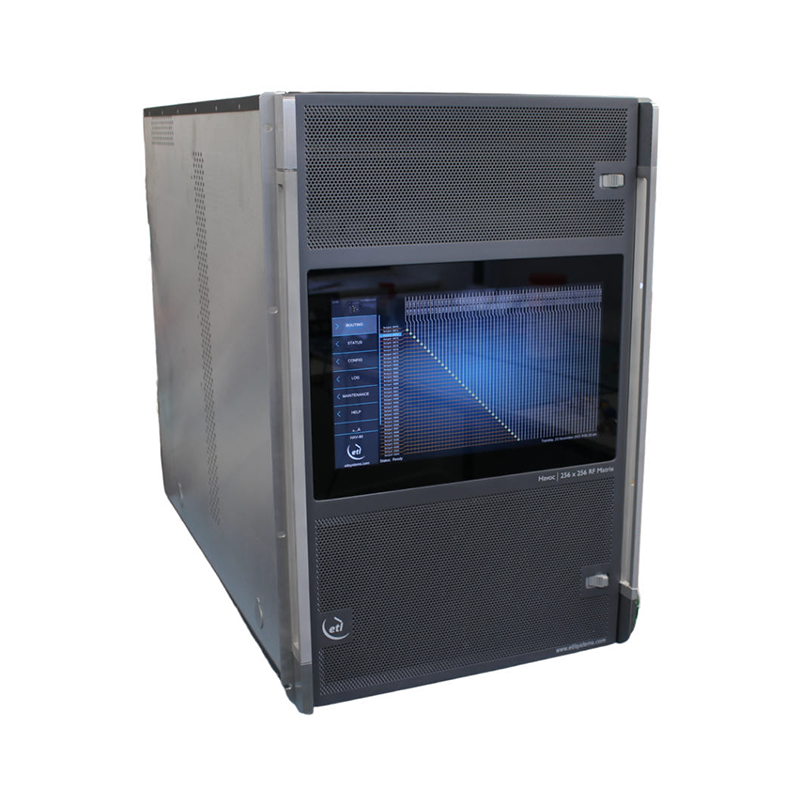

ETL Systems Havoc HAV-80 256×256 L-Band Distributive Matrix

ETL Systems Havoc HAV-80 256×256 L-Band Distributive Matrix

The ETL Systems Havoc HAV-80 is a non-blocking L-band distributive matrix for routing satellite signals from up to 256 inputs to 256 outputs. It operates from 850–2450 MHz in a 16U chassis and can be configured from 16×16 to 256×256 in blocks of 16.

Frequency Range: 850–2450 MHz
Matrix Capacity: Up to 256 inputs × 256 outputs
Routing: Non-blocking distributive (fan-out)
Expansion: Configurable in blocks of 16 inputs and outputs
RF Ports: 50 Ω SMA; all ports DC blocked
Switching Time: Approximately 50 ms
Control & Monitoring: Front-panel touchscreen; Ethernet with web interface, HTTPS and SNMPv3
Power Supplies: Quad redundant, hot-swappable
Form Factor: 16U, 19-inch rack mount

Key Features

• Hot-swappable RF modules, CPU modules, power supplies and fan trays

• Dual redundant CPU modules

• Powers only active signal routes to reduce power consumption

• Monitors module temperatures, fan speeds, RF amplifiers and power supply loading
